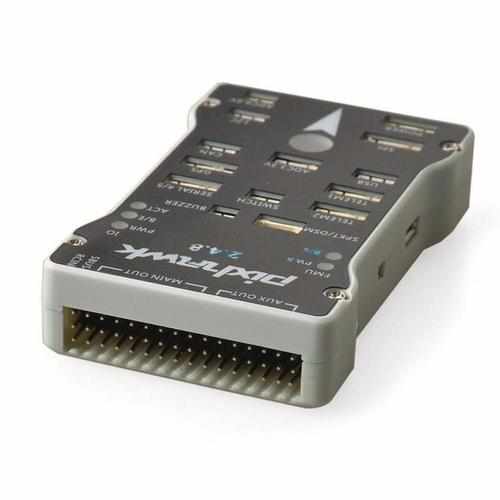

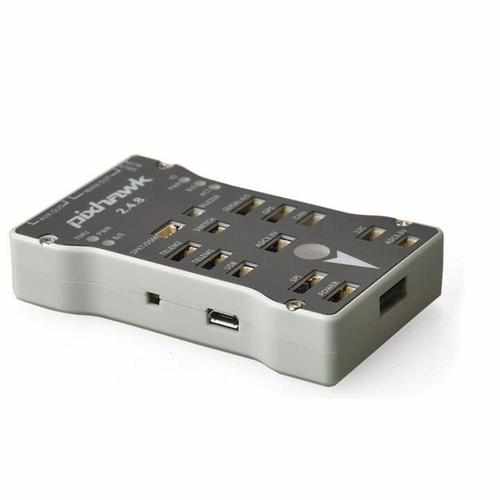

Pixhawk PX4 Autopilot PIX Flight Controller

A new generation of 32-bit processors flight control strong incoming, integrated PX4FMU + PX4IO on one board

Features:

The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;

14 PWM / servo output;

Bus interface (UART, I2C, SPI, CAN);

The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

Provide automatic and manual modes;

Provide redundant power input and failover;

Multicolor LED lights;

Provide multi-tone buzzer Interface

Micro SD recording flight data;

Specifications:

Microprocessor

32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit

frequency: 168MHZ, 256K RAM

32 STM32F103 backup coprocessor

Sensor

L3GD20 3-axis digital gyroscope 16

LSM303D 3-axis accelerometer 14 / Magnetometer

MPU6000 6-axis accelerometer / magnetometer

MS5611 precision barometer

Interface

5 high voltage compatible UART 1, 2 with hardware flow control

2 CAN

Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

Futaba SBUS compatible inputs and outputs

PPM Signal Input

RSSI (PWM or voltage) Input

I2C

SPI

3.3 and 6.6VADC input

External MICRO USB Interface

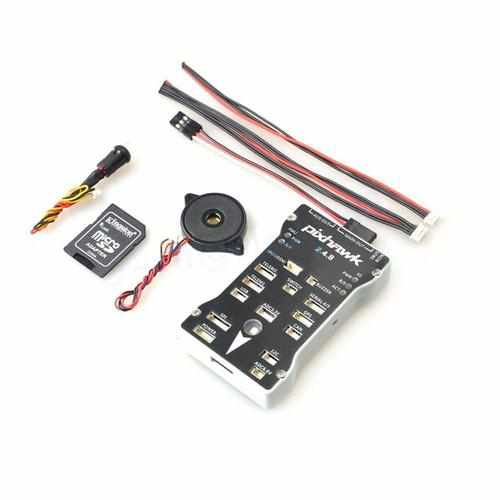

Packing list:

Pixhawk 2.4.8 32bit ARM Flight Controllerx 1

Original shell x 1

Safety buttonx 1

Buzzer x 1

4G TF card(IO firmware has written) x1

Turn 6pin 6pin cable x 1

4pin turn 4pin cable x 1

3pin DuPont line x1
