Pixhawk RGB Flight Control Accessories

Pixhawk powerful self-evident, it is highly integrated multifunction indicator brightness RGB full color for easy identification flight control state, compared to the previous APM is more intuitive, is great design. But the problem here: the Fengyun RGB LED facing up, can only be viewed on the ground, unable to identify the state of the air flight control. The other is surrounded by some of the rack is full design, such as SKY-HERO, flight control can be hidden in the middle of two center panels, while well-protected, users can easily connect the USB cable. So we refer to the official accessories design, launched this combo Pixhawk-RGB module functions.

Pixhawk-RGB module has the following characteristics:

The RGB LEDs to display extended to the exterior, when connected to the module, built-in RGB flight control automatically turns off;

Extension of USB ports, convenient USB cable from the external links, without limitation flight control installation location;

Pixhawk onboard with identical Toshiba LED RGB controller and Osram's high-brightness LED;

Molex connector and the original 1.25 HRS original USB socket to ensure optimum contact stability.

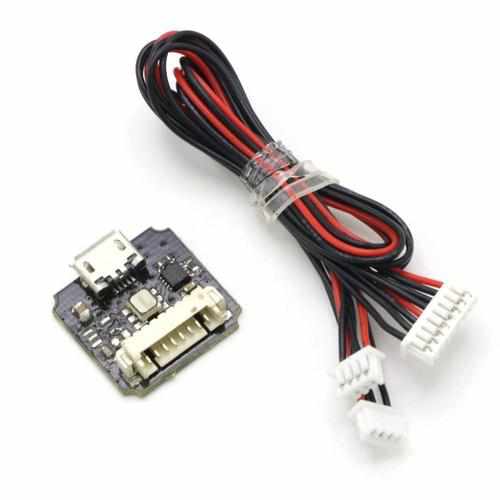

Pixhawk-RGB module and Pixhawk like flight control connection (please note that this price includes only Pixhawk-RGB and cable):

Instructions for use:

The Interface I2C flag 4P cable plugs connected Pixhawk part of the flight control I2C port, if I2C port is occupied, please use the I2C breakout board; another part of USB plug connected to the USB port of the flight control, you can complete the connection; when used, the onboard flight control RGB light will automatically turn off, unplug the plug is for the use of the onboard I2C RGB again.

Size / weight: 18 × 18 × 5mm/4g (with cable)
