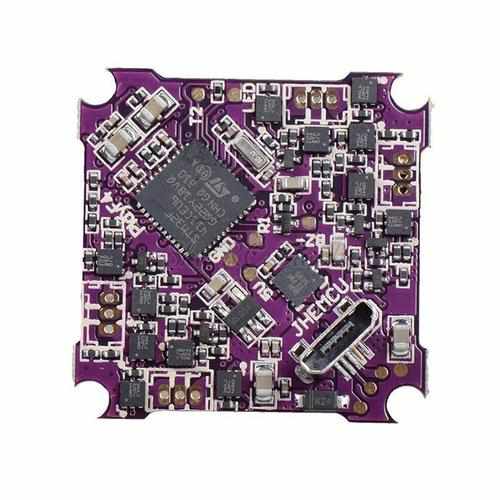

Play F4 whoop Flight Control

Play F4 whoop flight control 1-2S integrated four-in-one brushless ESC, using MPU6000 sensor and connected via SPI bus to improve the sampling rate of the sensor, F4 master to improve the operating frequency of the program, providing higher control accuracy and faster The speed of response. The integrated OSD comes with Betaflight online tuning, which is used in the current horizon four-axis small brushless four-axis rack. Integrated 4-in-1 ESC supports DSHOT signal output. Light weight, small size, low thickness and so on.

For receiver configuration, SBUS/IBUS and DSM receiver inputs, configure RX2 as the input interface.

Flight control configuration:

CPU: STM32F411CEU6

Sensor: MPU-6000 three-axis accelerometer / three-axis gyroscope (SPI connection)

Power supply: 1-2S battery input (DC 3.2V-8.4V)

BEC: Built-in buck-boost circuit (1S input BEC output 0.5A, 2S input BEC output 1.5A)

Receiver: PPM, SBUS, IBUS, Spektrum DSM2/DSMX, 1024/2048.

Built-in OSD interface

Led_Strip interface

BUZZER buzzer interface

UART1: TX1 (picture transfer), RX1

UART2: TX2, RX2 (for receiver)

Three sets of BEC output pads

Support BLheli suite ESC programming

Built-in voltage detection

Board size: 28.5*28.5MM

Screw hole spacing: 24.5*24.5MM diameter 3.0MM

Board weight: 3.0 g

Brushless ESC configuration:

Power supply: 1-2S

Current : 5A continuous peak 7A (for 2 seconds)

Support BLHeliSuite programmable

Factory firmware: S_H_50_REV16_7.HEX

Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Package Included:

1 x Play F4 whoop flight controller

4 x 3P*1.25MM in-line sockets

1 x Power plug wire
