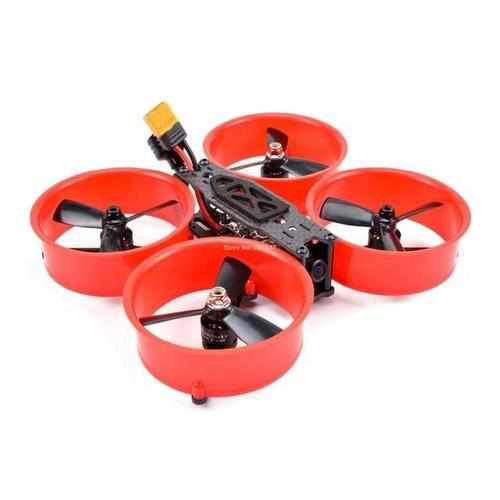

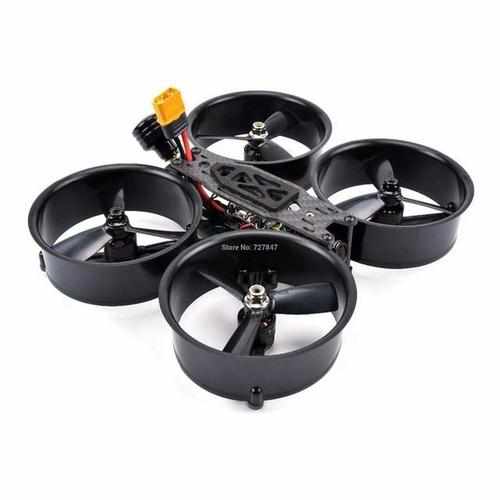

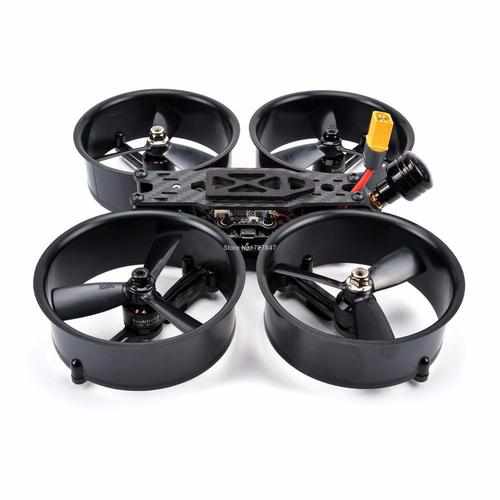

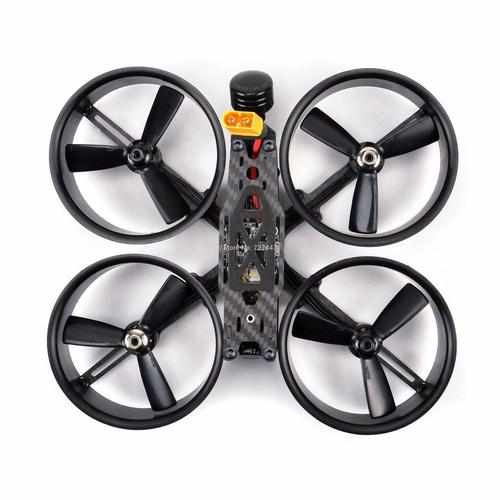

PNP CLOUD-149 RC Frame

Specification:

Item name: CLOUD-149 RC Drone

Wheelbase: 149mm

Structure: X-type Division

Top plate: 2mm

Side plate: 1.5mm

Bottom plate: 3mm

Internal height: 30mm

Plastic parts: ABS material plastic Diversion ring

Printed parts: TPU antenna base *1

Recommend Battery(Not included): 3-4S 850mAh

1306 3100KV Brushless Motor

KV: 3100

Configu ration: NP

Stator Diameter: 18mm

Stator Length: 14.1mm

Shaft Diameter: 5mm

Motor Dimensions(Dia.*Len): Φ18×15.1mm

Weight (g): 12g

No.of Cells(Lipo): 2-4S

Max Continuous current(A): 7.9A

Max Continuous Power(W): 58.5W

Internal resistance: ohm

1407 4000KV Brushless Motor

Model: 1407

Item Name: 1407 4000KV 2-3S Brushless Motor

Version: CW Screw Thread / CCW Screw Thread ( Optional)

Configuration: 9N12P

Input Voltage: 2-3S Lipo

KV: 4000KV

Motor Width: 18.6mm

Motor Height: 29.7mm

Shaft Diameter: M5

​Weight: 18g

Propelelr Adapter Shaft Thrad: M2

Recommend Propeller: 5 Inch Prop

Max. Thrust: 400g

Flytower Mini F4 Integrated OSD Mini Flight Control

First, equipped with MPU6000 F4 flight control acceleration faster response; integrated 5V 1A BEC, integrated OSD. (This version is 6DOF, no barometer and electronic compass)

This board provides all the features, weighs only 8g, fixed hole for the 20MM ( M2.5 hole );

For four-axis models tailored, built-in LC filter, support BF firmware;

Support 2-4S power input;

Built-in 5V 1A output BEC;
