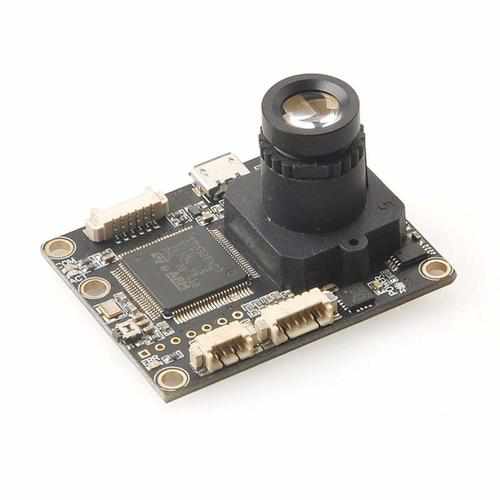

PX4FLOW Optical Flow Sensor Smart Camera

Introduction:
PX4Flow is an optical flow smart camera. It has a native resolution of 752x480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitive. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Specifications:

STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)

752 * 480 MT9V034 image sensor, L3GD20 3-axis Gyro

16 mm M12 lens (IR block filter)

Size 45.5 mm x 35mm

Power consumption 115mA / 5V

Package Included:

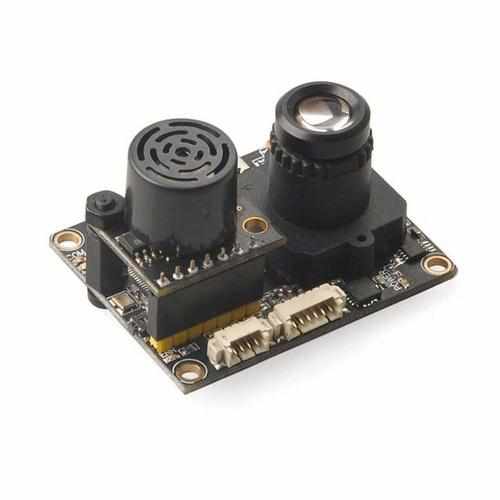

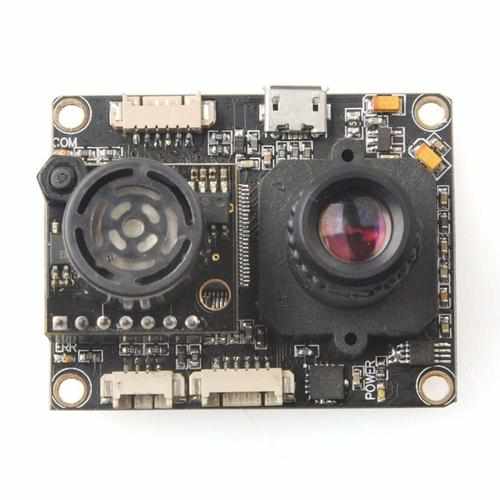

Optical Flow meter with Ultrasonic module

PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera x 1

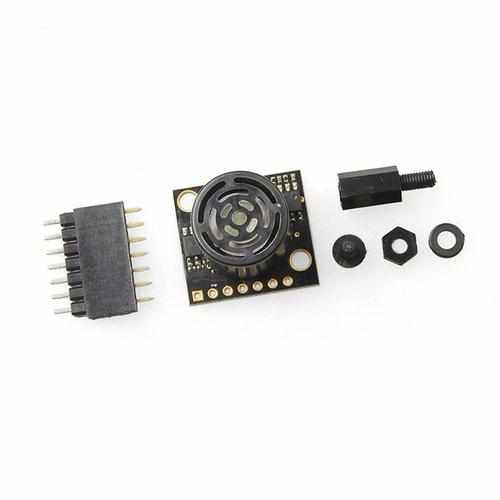

Ultrasonic module x1

Connecting cable x 1
