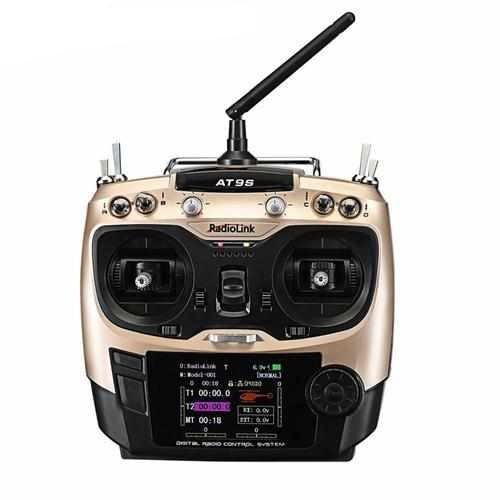

Radiolink AT9S R9DS DSSS / FHSS 2.4G 9CH Transmitter / Receiver

Features:

Fast response, 3ms only, which is much less than the average 20ms even 9 channels

act synchronously.

English,Chinese ,EsPanol,Deutsch,French,Italiano,Turkish,Russian&Korean menu can be switched, full types specialized helicopter 8 swash plate modes, fixed wing 2 airfoils 3 rears, gliders 4 airfoils and 2 rears, multi-copter menu.

DSSS and FHSS spread-spectrum technology working synchronously, QPSK modulation support excellent anti-interference performance.

Programmable mix control. Basic menu, advanced menu, graphic view for verities of throttle and servo curve.

Support S-BUS, PPM and PWM signal.

Unique telemetry

Receiver integrates signal strength and voltage telemetry sensor.

Both R10DS and R9DS support extended engine voltage telemetry module PRM-01 and OSD

info telemetry module PRM-02. PRM-02 can feedback GPS, SPEED, voltage etc. on

AT9S/AT10 display when work with flight controller APM or PIX.

4096 section precision, 0.25us per section, servo anti-shake rudder.

Vibration alarm.

Support USB online upgrade, the upgrade firmware V1.3.2 add CAR and BOAT model type.

Four VR switches, three three-gear switches, four two-gear switches, a reset trainer switch. Support multiple aerial control mode and PTZ control.

Specification

Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm

Weight: 0.88kg

Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)

Modulation mode: QPSK

Channel bandwidth: 5.0 MHz

Spread spectrum: DSSS&FHSS

Adjacent channel rejection: >38dbm

Transmitter power: <100mW (20dbm )

Operating current: <90mA

Operating voltage: 7.4~18.0V

Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment

Channel: 9 channels

1 Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor

Simulator model: under the simulator model the transmitter action turn off, change to power saving model

Screen: 2.8 inches 16 colorful screen, 240*320 pixels

Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS

Package

1x RadioLink AT9S Upgrade Transmitter

1x Mini R9DS

1x CD
