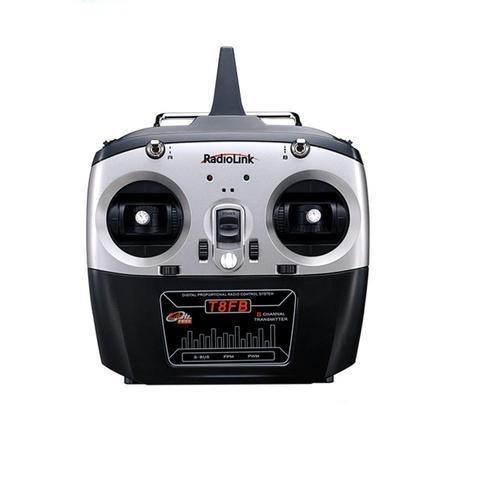

RadioLink T8FB 8ch RC Transmitter R8FM Receiver

Features:

1.Custom designed firmware

Be applicable to helicopter, fixed wing, glider, multi-copter. Special firmware will be designed according to your model types.

2. Inheritance industrial designing

Cooperate with professional designer of AT9. T8FB adds innovation and independent design concept, can be a perfect choice for your plane.

3. Online upgrade

Unique upgrade mode, through simulator port and special Radiolink upgrade cable, no need for driving programs and is perfect compatible with all OS.

4. Humanized operation

On the basic experiences of modelers, T8FB, simplify the operation, makes it easy to use even without illustration.

5. Long-tested anti-interference

Follows the technology of wireless spread spectrum used by T7F, makes it possible to control freely in condition of same frequency interference.

6. S-BUS, PPM and PWM signal output at the same time

Compatible with FUTABA S-BUS port, also supports cable connection input one by one, S-BUS, PPM and PWM signals are possible to use at the same time

7. Incredible price

Incredible price own high level specification.

T8FB Technical Parameters

Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm.

Weight: 0.47kg(including R8EH)

Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Modulation mode: GFSK

Channel bandwidth: 400KHz

Band width: 1200KHz

Spread spectrum: FHSS

Adjacent channel rejection: >36dBM

Transmitter power: <100mW (20dBM)

Sensitivity: -104dBM

Speed rate: 38kbps

PWM output: 1.0ms~2.0ms

Section precision: 2000, 0.5us per section

Cycle:15 ms/per frame

Radio T8FB operating voltage: 4.8V~18V

Radio T8FB operating current: <110mA

Receiver R8FM operating voltage: 4.6~10V

Receiver R8FM operating current: <30mA

Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.

R8FM Receiver:

Channel: 8CH

Operating voltage: max 10V.

Operating current: 19-25mA(input voltage 5V)

Size: 48.5*21*11mm

Weight: 7g

Section precision: 4096

Signal output: S-BUS, PPM and PWM PWM

signal mode: Green LED, output 8 channel PWM signal.

SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time

Package Including:

1 * T8FB 2.4G 8CH Remote Control System Transmitter

1 * R8FM Receiver
