Rooster 230 5" FPV Racing Drone Kit

Specifications:

Frame Weight approx 123 grams(5inch)

Motor to Motor :225mm (5inch)

Frame Shape: Compressed X

Main Plate Thickness: 4mm

Arm Thickness: 4mm

Hardware:

Stainless Steel Bolts

Aluminum Cage

Aluminum Standoffs

Center Stack Mount: 30.5mm

FPV Camera Mount: 28.5mm (Swift v2, Arrow v3, etc)

F4 V3 PRO Flight Control Integrated OSD 5V 1A BEC

Standard flight control mounting hole position 30.5X30.5mm, external shape 36X36mm, integrated 5V 1A BEC *, compatible with mainstream BF CF firmware, reserved PWM port, multi-port setting, support PWM SBUS PPM IBUS DSM2 mainstream mainstream receiver, integrated OSD Use a firmware compatible solution.

1. Flight control equipped with F4 chip can support flight control to run flight calculation at 32K speed. (Support digital signal ESC running DHOTS 150/300/600/1200 high running speed, the two will bring better flight effect) In turn, it brings powerful computing power and computing speed, making the player's flight easier, stable, smooth and safe.

2. Direct integration and firmware direct-part compatible OSD module solution, you can adjust various OSD settings directly in the ground station, use firmware compatible OSD program, do not need players to write OSD data and firmware again, all aspects of OSD The requirements look at the data, battery voltage, flight current, flight time and other practical parameters necessary for everything. The setup is simple and convenient. There are also a variety of personalized settings.

3. Integrated 5V BEC flight control supports direct power input, with more diversified wiring and simple installation wiring

SBUS signal configuration RX6, DSM configuration RX1.

1. Standard flight control mounting hole position 30.5X30.5mm shape 36X36mm

2, integrated 5V 1A BEC

3, equipped with STM32 F405 chip compatible with mainstream BF CF firmware

4, reserved PWM port, multi-port settings support PWM SBUS PPM IBUS DSM2 mainstream mainstream receiver

5, integrated OSD using firmware compatibility program, support for 3.2.0 firmware

6. Reserve active buzzer, active programmable LED light, voltage detection port.

7, support SD card slot

8, built-in barometer

9, weight: 7 grams

RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Color: Red

Length: 31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

7. Dual Lock CW / CCW Locknuts

FVT LittleBee 30A-S ESC

Input Voltage: 2-6S Lipo

BEC Output: No

Continue Current: 30A, Burst Current: 35A up to 10S

Size: 35*17mm

Weight: 9g(include Power and signal wire)

Support Damped mode, Oneshot125, Oneshot42 and Multshot

Main IC: SILABS EFM8BB21F16, MCU run 48MHz

MOS: Both low and high side fets are Nfets

Switching speed is very fast, it has dedicated driver chip

BLHeli_S Bootloader & Firmware

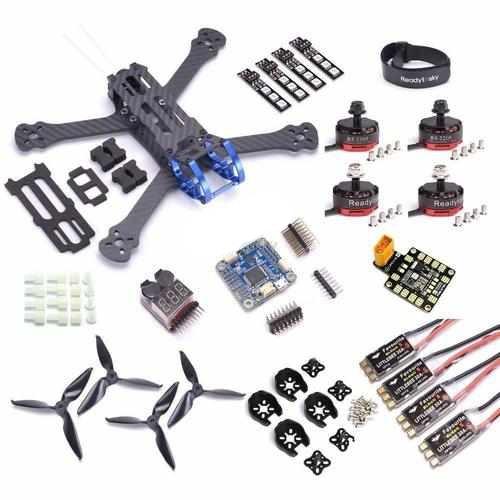

Package Included

1Set x Rooster 225mm 5inch FPV Frame kit （3 colors send as your choice）

1pcs F4 V3 Flight Control Board

4pcs Littlebee 30A-S ESC

4pcs RS2205 2300kv (2CCW, 2 CW)

4pcs Motor protection cover black

1pcs Matek Systems PDB-XT60 distribution board

4pcs LED Board

1set nlyon screws

1pcs battery alarm

4 pairs 5065 3-blade propellers

1pcs battery belt
