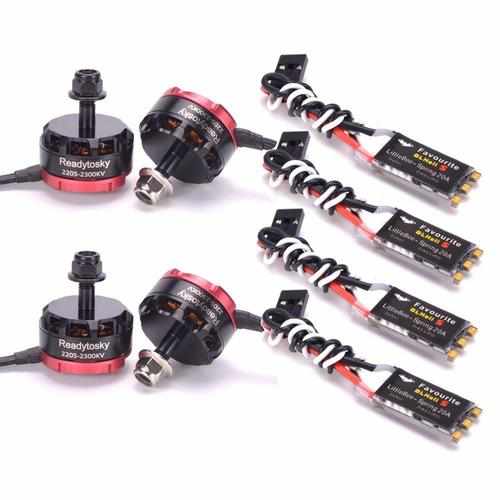

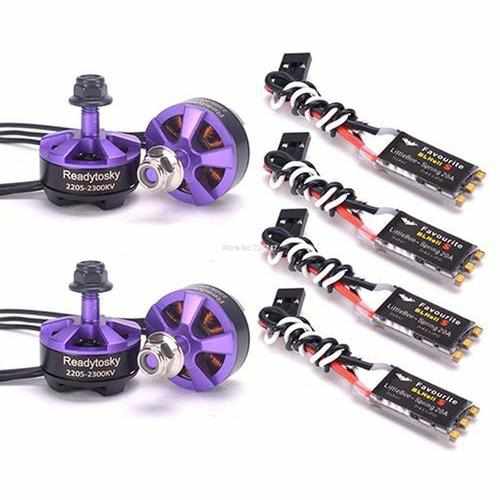

RS2205 2205 2204 2300KV CW / CCW Brushless Motor

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

7. Dual Lock CW / CCW Locknuts

Specifications:

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Color: Red

Length: 31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Model: 2205-2300KV

Thread: CW and CCW Screw Thread

Shaft diameter: M5

Motor mount hole size: M3

Battery: 3-4S lipo battery

Usage: for 180, 210, 220, 250 Frame Kit

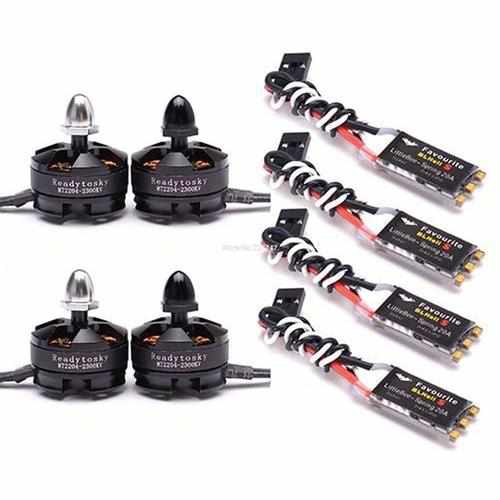

MT2204 2204 2300KV Brushless Motor

- With dynamic balance test

- Brand new and high quality

- KV : 2300

- MAX Thrust : 440G

- No. of Cell : 2-3S

- Framework : 12N14P

- Propeller : 5"~6"

- Length : 32.2mm

- Weight : 28.5g

- Shaft : 3mm

- Diameter : 27.9mm

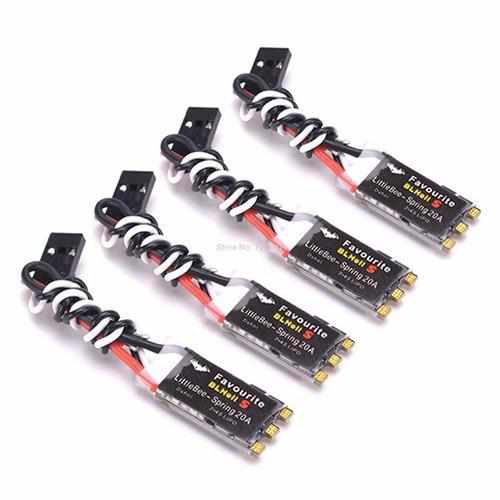

Littlebee spring BLHeli-s 20A ESC:

1:input Voltage:2-4S Lipo

2: NO BEC

3:Continue Current:20A,Burst Current:25A up to 10S

4:Size: 23.5*12mm.

5:Weight:4g(include Power and signal wire)

6:Support Damped mode,Oneshot125,Oneshot42 and Multshot and DSHOT

7:Main IC:SILABS EFM8BB21F16 ,MCU run 48MHz

8:MOS:Both low and high side fets are Nfets

9:Switching speed is very fast,it has dedicated driver chip

10:BLHeli S Bootloader & Firmware
