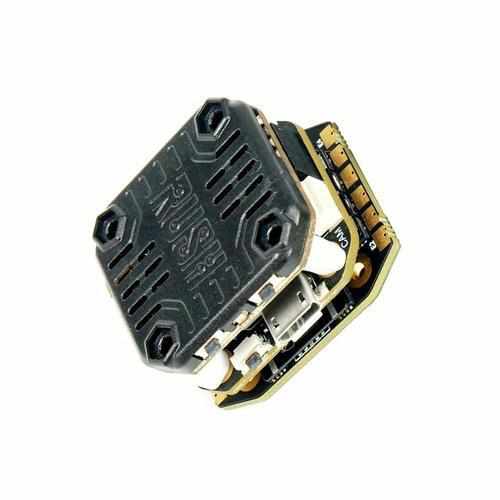

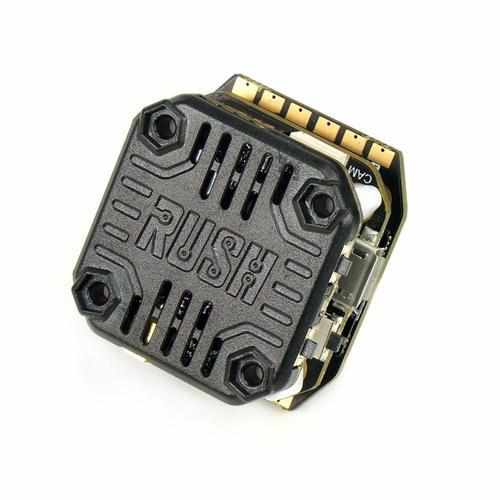

RUSH FPV TANK Stack RUSH CORE F7 / MATRIX 32bit 30A ESC

Specification:

Brand name: RUSHFPV

Item name: RUSH CORE 7 Flight Controller & RUSH MATRIX 30A BLHELI32 4IN1 ESC

RUSH CORE 7 Flight Controller

Firmware: RUSHCORE7 (BETAFLIGHT)

FC Programming: Supported

Programming via: Betaflight configurator or Others

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300/600/1200, Proshot1000 and etc.

Compatible with (Trabsmitter): PPM, Spektrum1024/2048, SBUS, SYMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.

OSD: Built-in ,NTSC/PAL Supported

MCU: STM32F722RET6 @216MHz

BLACKBOX: Built-in ,16MB

Voltage Monitoring: Supported

Current Monitoring: Supported

External Buzzer: Supported

LED Control: Supported

BEC: 5V@2A

USB Port: MicroUSB

Size: 28x29mm

Weight: 5.6g

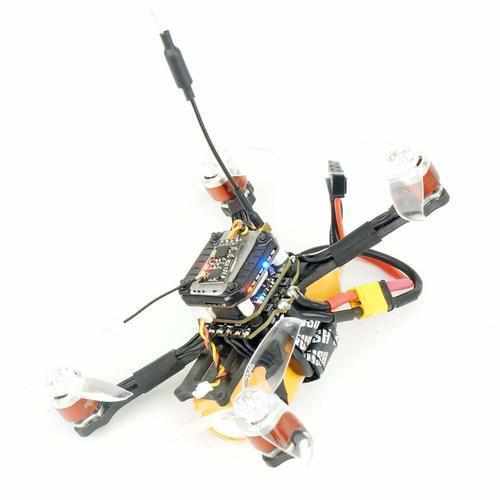

Appliications: 110-260mm FPV Drone

RUSH MATRIX 30A BLHELI32 4IN1 ESC

Cont. Current: 30A

Peak Current: 40A

BEC: N/A

LiPo Cells: 3-5S (Recommend)

Firmware: RUSH_MATRIX_30A Firmware

Weight: 6.5g

Size: 32x31.5x5.4mm

Mounting Hole: 20x20mm

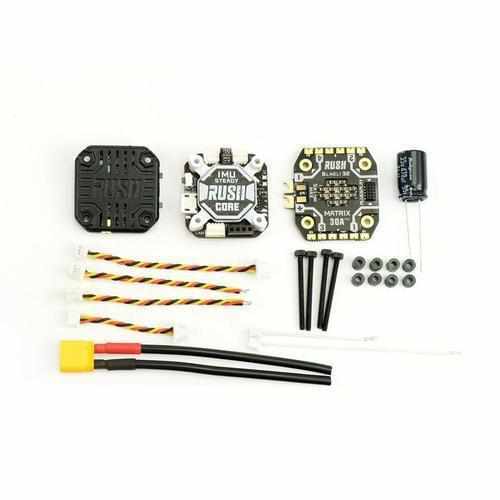

Package Included:

1 x RUSH CORE 7 Flight Controller

1 x RUSH MATRIX 30A Blheli_32 4 in 1 Brushless ESC

4 x M2 Nut

4 x M2 x25mm Screw

5 x Short Lsolation column

5 x Long Lsolation column

2 x SH1.0 3Pin Lock connection cable (60mm For receiver and LED strip)

2 x SH1.0 4Pin Lock connection cable (30mm/65mm For camera)

1 x MT30 Power plug (with cable)
