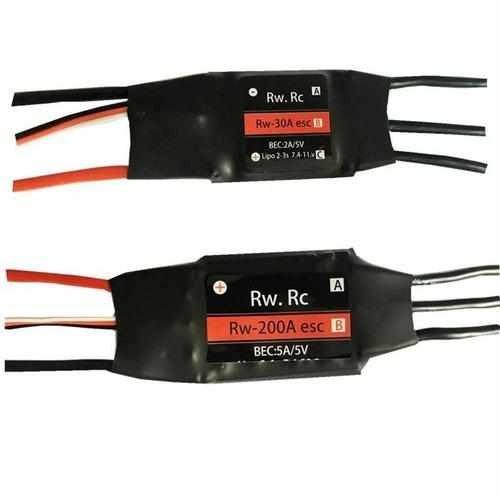

RW.RC 2-6S 30A 50A 70A 125A 200A ESC 5V/2A 5V/5A Brushless Speed Contr

30A ESC / RW

Voltage range 7.4V - 11.1V (4---12NIMH 2-3LIPO)

Internal resistance 0.003 MR

Featured high performance FET

Single-section LIPO protection voltage 3.0V

continuous working current 30A instantaneous 50A (10 seconds)

PWM frequency 8K/16K/32K

Size: 40 X 24 X 7 (mm)

Weight: 12 grams (excluding line) 22 grams (including line)

Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.

BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo

50A ESC / RW

7.4V—11.1V (4---12NIMH 2-3LIPO)

Size: 46x 35 x 8 mm

Weight: 60 grams

Featured high performance FET

internal resistance 0.002MR

Single section LIPO protection voltage 3.0V

Continuous working current 50A instantaneous 430A (10 seconds)

PWM frequency 8K/16K/32K

Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM

BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo

70A ESC / RW

Voltage range 7.4V - 14.8V

Size: 68 x 35 x <?xml:namespace prefix = "st1" />8 mm

Weight: 60 grams

Voltage range: voltage range 4.8V—15V (4---12NIMH 2-3LIPO)

internal resistance 0.002MR

Single section LIPO protection voltage 3.0V

Continuous working current 70A instantaneous 430A (10 seconds)

PWM frequency 8K/16K/32K

Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.

BEC 5V/5A Instant 3A Supports High Torque Hollow Cup Digital Servo

125A ESC / RW

Size: 68 x 35 x 12 mm

Weight: 90 grams

Voltage range: voltage range 7.4V - 14.8V

Internal resistance 0.001M

Single-section LIPO protection voltage 3.0V

continuous working current 100A instantaneous 520A (10 seconds)

PWM frequency 8K/16K/32K

Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.

BEC 5V/5A Instant 3A Supports High Torque Hollow Cup Digital Servo

200A ESC / RW

Size: 68 x 40 x 12 mm

Weight: 90 grams

Voltage range: voltage range 7.4V - 14.8V

internal resistance 0.001MR

Single-section LIPO protection voltage 3.0V

continuous working current 200A instantaneous 756A (10 seconds)

PWM frequency 8K/16K/32K

Support most models with brushless sensorless motor, 14-pole motor speed can reach 30,000 RPM

Additional features:

Support reversing function

Support half-slope start

Throttle position error prohibits starting

Automatically learn the throttle stroke

Error signal off power

The receiver has no signal alarm and turns off the output.

Multi-function adjustment motor characteristics

Precautions for use:

This device is designed for battery energy. Other types of power supply cannot be used. If other power sources are used, it may damage the device or power supply.

This device is a remote control model product and cannot be used on the manned system to prevent it.

This equipment is a high-power electronic product, which will generate a lot of heat during work. Please pay attention to maintain forced air cooling conditions.

This device has a power supply voltage detection system inside. When connecting to the battery, please use the shortest connection cable and ensure the battery with sufficient current. In order to avoid the wrong action of the voltage system, affecting the use.

This device is not allowed to drive 2 or more motors at the same time to avoid malfunction.
