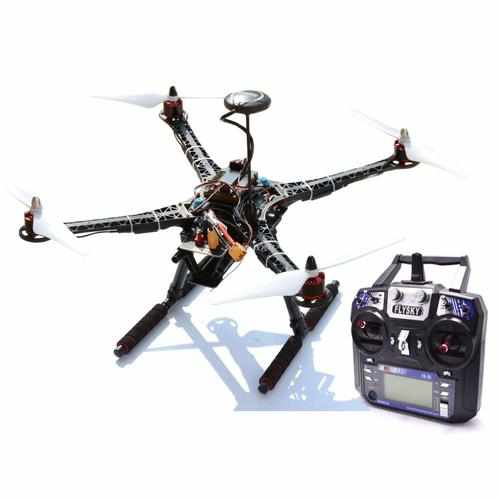

S500 Frame APM2.8 M8N GPS Power Module

S500 PCB 500mm Upgrade F450 Quadcopter Frame Kit w/Landing Gear MINI S800 EVO Design

Features:

- F450 upgrade quadcopter

- Learned arm design from DJI S800 EVO, and enhanced

- good work with Gopro Hero 3 2 Axis brushless gimbal for FPV

- PCB Center plate with solder point

- high quality carbon fiber landing gear

- Frame only, no electronic parts.

Specifications:

- Wheelbase: 500mm

- Motor suggest: 2212 KV980; 2216 KV880 KV900; 3108 900KV (not include)

- Prop suggest: 1045/1047/1147/1238 (not include)

- Battery suggest: 3S-4S 2200mAh-5200mAh (not include)

100% brand new

2212 920kv Motor

- Type : 22 x 12mm

- KV: 920rpm/V

- Voltage: DC 7-12V

- Weight: 53g

30A simonk esc :

100% brand new

30A SimonK firmware Brushless ESC.

Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.

ESC Specs:

Cont. current: 30A

Max. current: 35A

Input Voltage: 2-4S lipo / 4-12 cell Ni-MH/Ni-Cd

BEC: 5V 2A (Linear mode)

Size: 55x26x8mm (length 145mm including power cable)

Weight: ~24g

Package Included:

- S500 quadcopter frame X1

- Carbon fiber landing gear x1

- APM2.8 Flight Controller x1

- APM Shock Absorber x1

- Power Module x1 ( for the XT60 connector , we have yellow and black color , will send at random )

- M8N Gps x1

- GPS Stand Holder x1

- 2212 920KV Motor x4

- 30A Simonk Esc with 3.5mm connector x4

- 9450 propeller x4 ( 2 pairs )

- Male T plug x1

- Male XT60 plug x1

- Flyksy i6 transmitter & Receiver
