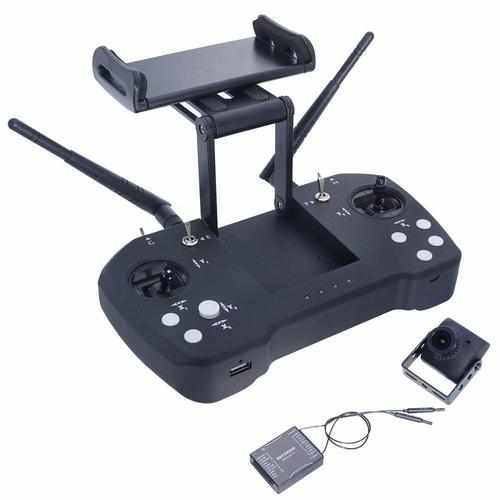

Skydroid T12 Mini Camera 20km Sigital Map Transmission Remote Control

Product characteristic

Dual antenna plus Dual module with control of algorithm to ensure reliable communication by full angle high gain antenna. Also thanks to latest FHSS(Frequency Hopping Spread Spectrum)technology to achieve perfect control of the FUAV and operation of camera.

Tx and Rx output sent flight data to ground station. Fully maximize advantages of 2.4G to solve the unstable and interference problem of 433Mhz and 915Mhz

Integrated internal broadcast station.

adjust parameter anytime through App (FUAV Helper).

Link by USB cable or Bluetooth. Also support S. Bus, PPM, PWM, I2C serial port and expandable.

Flight parameter can be adjusted through App in your phone. It can be linked by either USB (with OTG) or Bluetooth. You can change any features over the App, mode (mode 1, 2, 3,4) , Nor/Rev, fail safe,Sbus, ppm output and baud rate. Data is saved so that you can use anytime.

Base on "Tower" App to make ground station perfectly matched each other, larger view on the map. So you may do point to point planning and self operation. Also one key home return.

Internal 4000mah Li-ion battery can last for more than 24 hours with 100mw low power consumption . Your phone can be charged through the micro-USB port.

Highly integrated data, video and flight controller board. It makes the size smaller. Aluminium fordable mounting plate. With 360 degree adjustment.1.10 The camera equipped with a 8w super bright LED for better capture image at night time

T12 FUAV is specially designed for agriculture, video capture, and drone flying

Make sure the ground station (Tx)is fully charged

Please check the position of antenna is correctly placed

Check the firmware is update

2. How to set parameter through the Apk

Check battery is fully charged and both reciever(Rx) and groundstation(Tx) are

Only support Android system at the moment

Please install APK through official website (www.fuav.xin) Download "Device Helper"

Turn on the Tx by short press once then long press to turn on. Open Bluetooth on Android phone and search T12-xxx pairing code is 1234

Adjust Parameter: Nor/Rev, ATV, Channel, failsafe

Hand Settings: Mode 1,2,3,4

Other option : Select output Sbus, PPM and Baud Rate

Update Device: Online firmware update. Use Bluetooth to update Tx, USB for Rx

adjust parameter of Tx. Apk read the data of the Tx and Rx

colour: black

Material: ABS plastic

size: 15cmx15cmx10cm

Package Contents:

1 x T12 remote control

1 x receiver

1 x night vision camera remote control

1 x digital transmission Model1 right hand throttle

1 x standard definition digital image transmission

1 x searchlight
