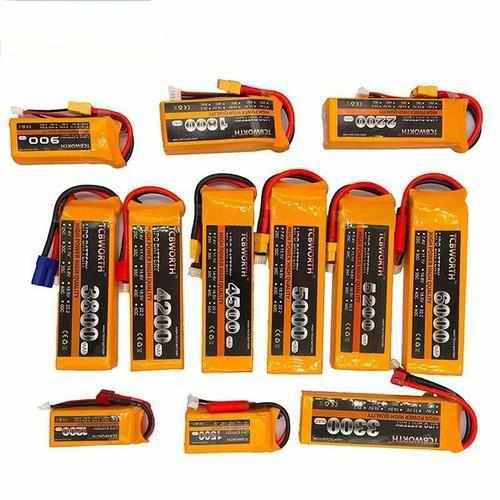

TCBWORTH 3S 11.1V 1200mAh 2800mAh 3800mAh 4200mAh 4500mAh 5200mAh 25C

Specifications:

Capacity: 1200mAh 2800mAh 3800mAh 4200mAh 4500mAh 5200mAh

Continuous Discharge Rate: 25C 35C and 60C

Burst Rate: 50C 70C and 120C

Voltage Per Cell: 3.7V

Max Voltage Per Cell: 4.2V

Voltage Per Pack: 11.1V

Max Voltage Per Pack: 12.6V

Suggest Charge Rate:1C

Upgrade Parts/Accessories: Grade A Grade

Use For: RC Airplane Drone Car Helicopter Quadrotor Baot Tank

Certificate: CE,ROHS,MSDS,UN38.3

Plug: T/XT60/XT90/EC5/JST/Traxxas/XT150/SM/Banana 3.5 4.0

Voltage

Capacity(mAh)

Discharge Rate

Size

Weight

3S 11.1V

1200

25C

75*35*16.5

128

35C

76*35*17

129

60C

76*35*75.5

130

2800

25C

118*35*28

240

35C

134*36*23.5

271

60C

124*43*22

286

3800

25C

135*42*24

325

35C

135*42*25

332

60C

135*42*26

341

4200

25C

136*43*26

349

35C

136*43*27

356

60C

136*43*28

362

4500

25C

137*43*21

280

35C

137*43*25

340

60C

145*48*27

420

5200

25C

146*48*27

430

35C

147*50*29

470

60C

141*46*30

430

Instructions:

Please charge full after received battery before use , don't overcharge, 1 piece show 4.2V is charge full . It is best choose charger with preventing overcharge

Because the battery of shipping time is long, sometimes the battery voltage will automatic drop, there will be voltage difference between each battery cell , please use the B6 charger choosing LiPo STORAGE charging mode, the voltage will be balanced

Battery full charge more than 48 hours but no use, please discharge to 3.85V, Otherwise it's easy to get gas and damage the battery

If long time don’t use battery, it should be tested every month and do a discharge. The voltage should be maintained between 3.8V and 3.9V when stored

During normal use battery , please try to control the voltage from 3.5V to 4.2V, it is best with low voltage alarm
