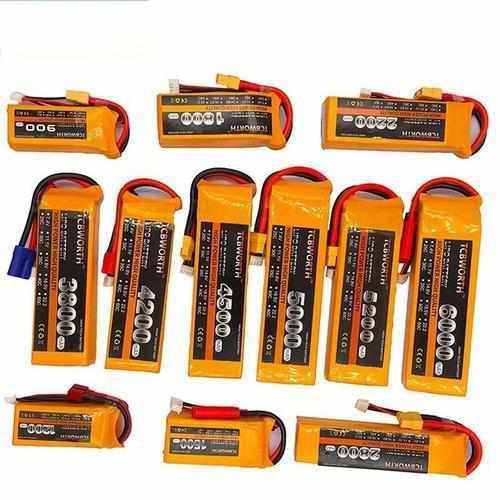

TCBWORTH 3S 11.1V 1300mAh 1800mAh 3500mAh 4000mAh 4500mAh 6000mAh 30C

Specifications:

Capacity: 1300mAh 1800mAh 3500mAh 4000mAh 4500mAh 6000mAh

Continuous Discharge Rate: 30C and 40C

Burst Rate: 60C and 80C

Voltage Per Cell: 3.7V

Max Voltage Per Cell: 4.2V

Voltage Per Pack: 11.1V

Max Voltage Per Pack: 12.6V

Suggest Charge Rate:1C

Upgrade Parts/Accessories: Grade A Grade

Use For: RC Airplane Drone Car Helicopter Quadrotor Baot Tank FPV Racing Drone ect.

Certificate: CE,ROHS,MSDS,UN38.3

Plug: T/XT60/XT90/EC5/JST/Traxxas/XT150/SM/Banana 3.5 4.0

Type(mAh)

Size

Weight

1300-3S-30C

75*34*22.5

140

1300-3S-40C

75*34*25

160

1800-3S-30C

106*33*23

160

1800-3S-40C

107*33.5*24

165

3500-3S-30C

　 135*42*25

332

3500-3S-40C

　 136*42*26

344

4000-3S-30C

　 136*43*26

352

4000-3S-40C

　 136*43*27

366

4500-3S-30C

137*43*22

290

4500-3S-40C

137*43*26

350

6000-3S-30C

158*48*27.5

460

6000-3S-40C

159*48*28

465

Instructions:

Please charge full after received battery before use , don't overcharge, 1 piece show 4.2V is charge full . It is best choose charger with preventing overcharge

Because the battery of shipping time is long, sometimes the battery voltage will automatic drop, there will be voltage difference between each battery cell , please use the B6 charger choosing LiPo STORAGE charging mode, the voltage will be balanced

Battery full charge more than 48 hours but no use, please discharge to 3.85V, Otherwise it's easy to get gas and damage the battery

If long time don’t use battery, it should be tested every month and do a discharge. The voltage should be maintained between 3.8V and 3.9V when stored

During normal use battery , please try to control the voltage from 3.5V to 4.2V, it is best with low voltage alarm
