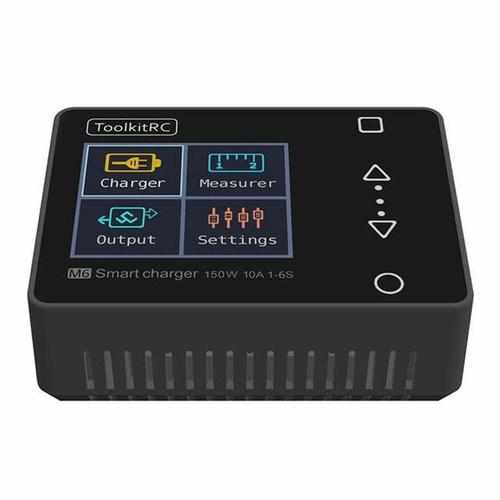

ToolkitRC M6 10A 2-6S Mini Pocket Model Charger

ToolkitRC M6 is the second multi-purpose tool chain product. It is compact and compact. It integrates balanced charge and discharge, electric display, PPM/PWM/SBUS signal measuring device, signal source and other functions.

Color screen

Traditional charging function

Electric display function

Steering gear test

Receiver test

Constant current constant voltage source output

TVC function (terminal voltage control): Lithium battery cut-off voltage can be set

Press and hold the setting button during charging to dynamically modify the charging current

Hub mode can be switched, the default setting is used by default.

It can be adapted to mainstream drone batteries and automatically activated and charged.

Measurement function: It can measure battery voltage, battery internal resistance, and can measure signal values ​​such as

PWM/PPM/SBUS with an accuracy of 1 microsecond.

Output function: can output PWM/PPM/SBUS standard signals with an accuracy of 1 microsecond

The discharge mode has a power recovery function setting

Technical Parameters

Input voltage range: 7-28V max 12A

Charge, discharge and balance management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries

Charging current: max. 10A 150W

Discharge current: normal mode max 2A @8W; recovery mode up to 10A 150W

Constant current constant voltage source output, customizable 1-28V constant voltage, 1-10A constant current

USB 2.1A 5.0V output, rechargeable mobile device

LCD: 1.8 inches, 160*128 pixels, RGB TFT screen

Language: can be set to Chinese or English in the setting interface

The device is simulated as a USB flash drive, and the upgrade file is copied to implement product firmware upgrade.

Product weight: 80g

Product size: 68*49*26 mm

Packaging Information

Weight: 140g

Size: 80*80*35mm
