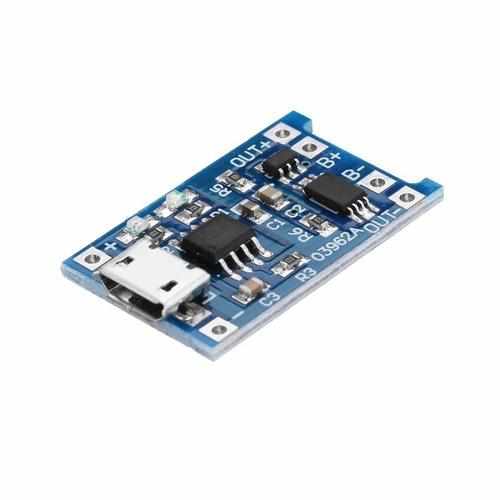

TP4056 Micro USB Type C 5V 1A 18650 Lithium Battery Charging Protectio

Specification:

Product name: Lithium Battery Charging Board

Input voltage: 5V

Maximum charging current: 1000 mA

Charge cut-off voltage: 4.2 V + / - 1%

Battery overcharge protection voltage: 2.5 V

Battery over-current protection current: 3 A

Input interface: micro USB or Type C

Size: 27mm x 17mm

How to Use:

1. Input port with micro 5pin USB female, can directly use mobile charger for input to the lithium battery,and still retain the input voltage wiring solder joints, can be very convenient.

2. Connect the battery to B + B - , insert mobile phone charger to the USB Female then red light is charging and green is full of charged.

Package includes:

5 or 10 x Lithium Battery Charging Module (battery not included)
