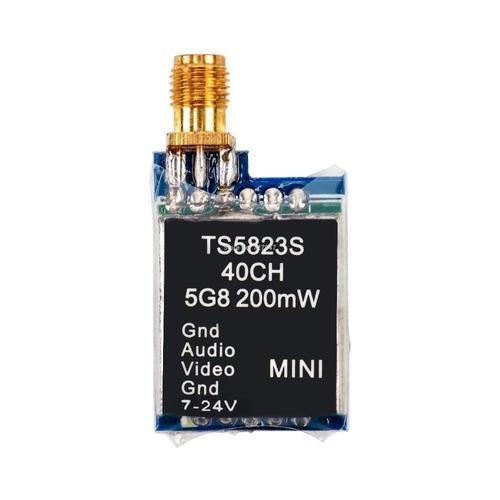

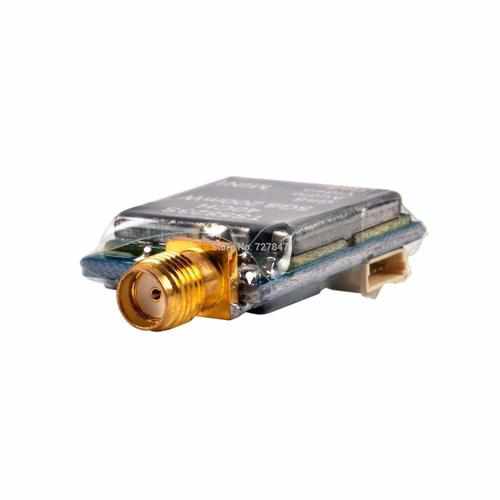

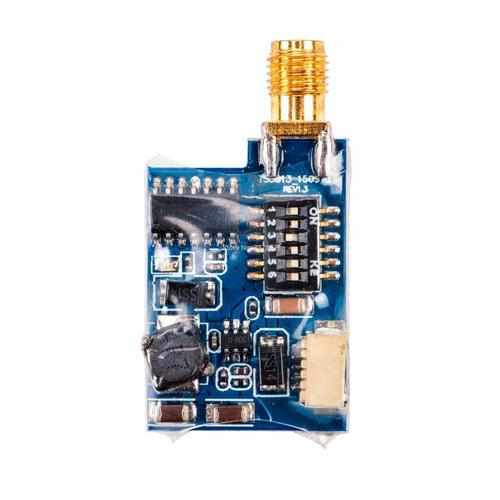

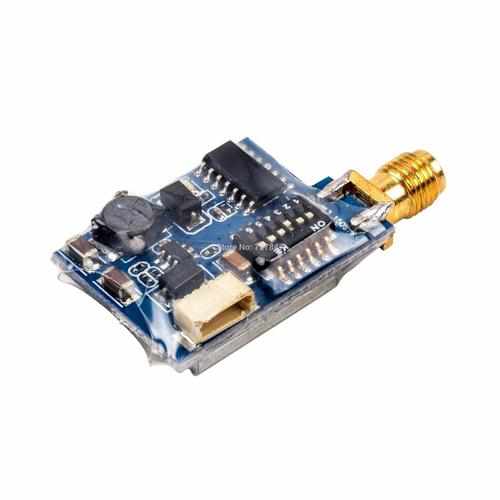

TS5823S TS5823 Mini AV Transmitter Module

$48.00

Specifications:Item Name: Transmitter ModuleItem NO.: TS5823SModulate: FM ModulateVideo Format : NTSC/PALOutput Impedance:50 OhmOutput Power : 23-24dBmChannel:40 CHOperating Voltage: 7V-24VSupply Current : 190mAOperating Temperature: -10~85Video Width : 0~8.0 MHzAudio Carrier Frequency : 6.5 MHzVideo Input Level: 0.8~1.2 Vp-pVideo Input Impedance :...

  • Availability: In Stock
Type

Specifications:

Item Name: Transmitter Module

Item NO.: TS5823S

Modulate: FM Modulate

Video Format : NTSC/PAL

Output Impedance:50 Ohm

Output Power : 23-24dBm

Channel:40 CH

Operating Voltage: 7V-24V

Supply Current : 190mA

Operating Temperature: -10~85

Video Width : 0~8.0 MHz

Audio Carrier Frequency : 6.5 MHz

Video Input Level: 0.8~1.2 Vp-p

Video Input Impedance : 75 Ohm

Audio Input Level : 0.5~2.0 Vp-p

Audio Input Impedance : 10K Ohm

Connector: Inner hole

Dimension: 40mm x 23mm x 8mm

Weight: 7.3g

Features:

-40 channels

-200mW RF power output

-Smallest and lightest, easy to carry.

-Super mini size and light weight,

-Suitable for small multi-quadcopter, escpeically for DJI wizard series aircraft.

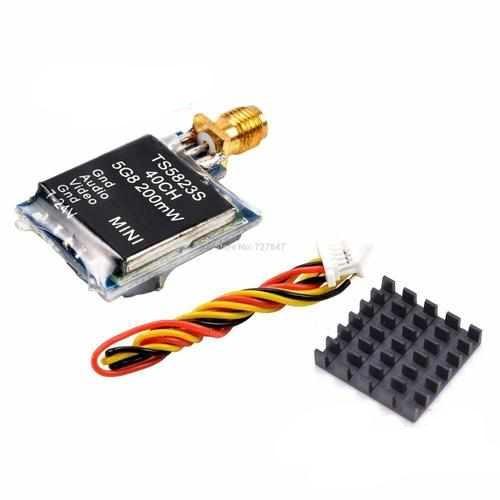

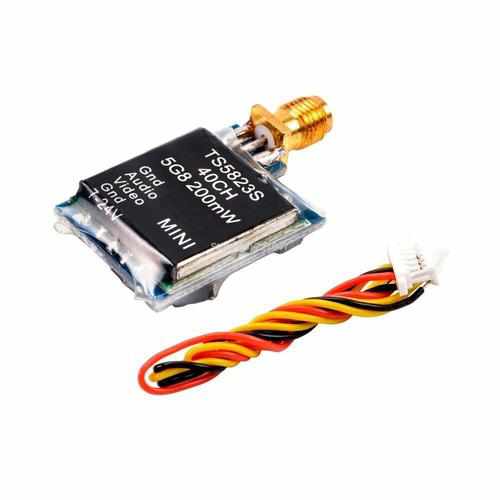

Package Included

1pcs x Upgrade TS5823S 40CH 5.8G 200MW Mini FPV Transmitter inner hole ( without antenna)

1set x connector cable

1pcs x heatsink
