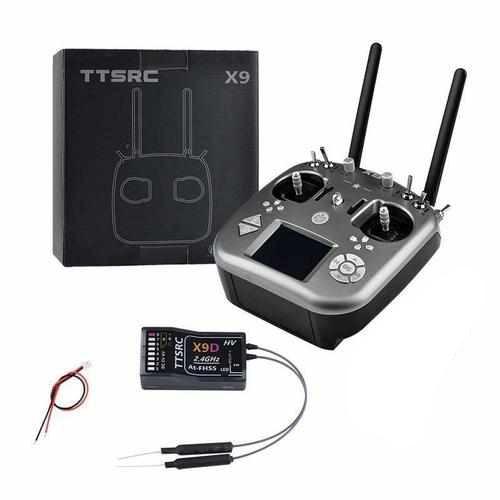

TTSRC X9 Remote Control Transmitter / X9D Receiver

Features:

Stylish, ultra-thin, low power.

The product has added an innovative design of accelerator switch based on the remote control of the same industry, making it convenient for both right-handed and left-handed users.

With 2.8" color screen, you can get different results by different controls to the LCD controller, and record the shape of the English or Chinese characters.

Comfortable to control the transmitter stick, it makes the flight very smooth

RF range: on ground 1000M, in air 3500M. Excellent anti-interference capability

Specifications:

Channels: 9

Working Voltage: 7V-18V

Working Current: 190mAh

Model Type: Fixed-Wing/ Glider/ Helicopter/Car/Boat/Multi-rotor/UAV

Transmission Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)

Transmission Power: less than 100mW (20dbm)

Modulation Mode: GFSK

Bandwidth: 0.5MHz

Spread Spectrum: AT-FHSS (two-way communication)

Stick Resolution: 4096

Antenna Length: 130mm (Dual Antenna)

Weight: 720g

Display: 2.8inch Color Screen, 320 * 240 resolution

Receiver Sensitivity: -107db

Remote Control Distance: 3.5 km in the air, 1 km at ground (according to the actual situation)

Controller Size: 175 * 175 * 60mm

Receiver Size: 25 * 47 * 14mm

Color: Grey

Support Receiver: all TTSRC receivers (X9D, 18RD, SZ007X7)
