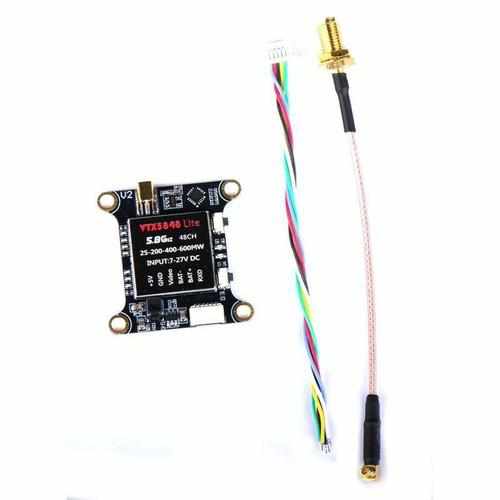

TX5848 LITE 48CH 5.8G Switchable FPV VTX Video Transmitter Module

Features:

Perfectly corresponds to mainstream flight control

The output power is stable, the transmission distance is far

Small size, 48 channels value, MMCX (transfer to SMA extension cable)

Powerful power chip, up to 27V input, output 5V / 1A low ripple, low interference

4 fast power switches, the current launch power 25mW200mW/400mW/600mW switchable

Specifications:

Item name: VTX5848 LITE image transmission module

Input voltage: DC 7V-27V

Input current: 16.4V (4S) 600mW = 360mA ± 10mA

Output voltage: 5V DC 1A

Power: 25mW, 200mW, 400mW, 600mW

The signal channel: 48 channels

Antenna Interface: MMCX (transfer to SMA extension cable)

Dimensions: 36 * 26 * 6mm Hole: 30 * 30mm

Item weight: About 7g (does not include the antenna and plug line)

Frequency switching: manual button / OSD (at the same time support)

Package information:

Package size: 8 * 6.5 * 1cm / 3.2 * 2.8 * 0.39in

Package weight: 13g / 0.46oz

Poly bag package
