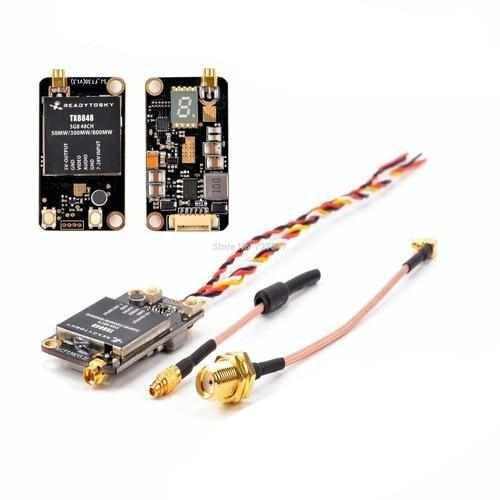

TX8848 Micro 5.8G Mini FPV Transmitter

This Type of transmission is applied to the tower type transmission of the crossing aircraft. The intuitive digital tube displays the channel and frequency band, and the transmimission power is adjustable (50 mw, 300mw, 800mw).

Suitable for all kinds of flight places.

The Button Operation:

Press the CH key, to digital character of the nixie tube is alway on. Press CH again to switch channels, and channel 1-8 to display. 3 seconds without the button operation returns to the normal display mode.

Press the FR button to display the English characters constantly. Press the FR button again to switch the frequency band, and the frequency Bands A, b, E, F, and L are display circularly. 3 seconds without key operation returns to normal display mode.

Press CH and FR at the same time, the digital tube P point is always on, press CH or FR again to switch the power, P point flashes once to work at 50mw, the twice flashing is 300mw, and the three times flashing is 800mw . 3 seconds without key operation returns to normal display mode.

Package Included

1pcs x 48CH TX8848 Micro 5.8G Mini FPV Transmitter
