PX4 Autonomy and Obstacle Avoidance - VOXL

VOXL® Enables the Smallest Autonomous Drones

VOXL is a companion computer that pairs with Flight Core® or Pixhawk® flight controller for obstacle avoidance and GPS-denied (indoor) navigation.

The VOXL advances the Snapdragon Flight and Qualcomm Flight Pro architectures to have great support for:

• PX4 Obstacle Avoidance and Autonomous Navigation

• ROS  / ROS2 / MAVROS / MAVSDK
• Open source Linux kernel, cross-compilers, PX4, ROS, OpenCV
• Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing.
• Run Docker on VOXL target for improved portability and maintenance.
• Add cellular LTE connectivity for beyond visual line of sight (add-on).

Ready to Use Development Tools

Software Features:

• Open source Linux kernel, cross-compilers, PX4, ROS, OpenCV
• Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing.
• Run Docker on VOXL target for improved portability and maintenance.
• Add cellular LTE connectivity for beyond visual line of sight (add-on)

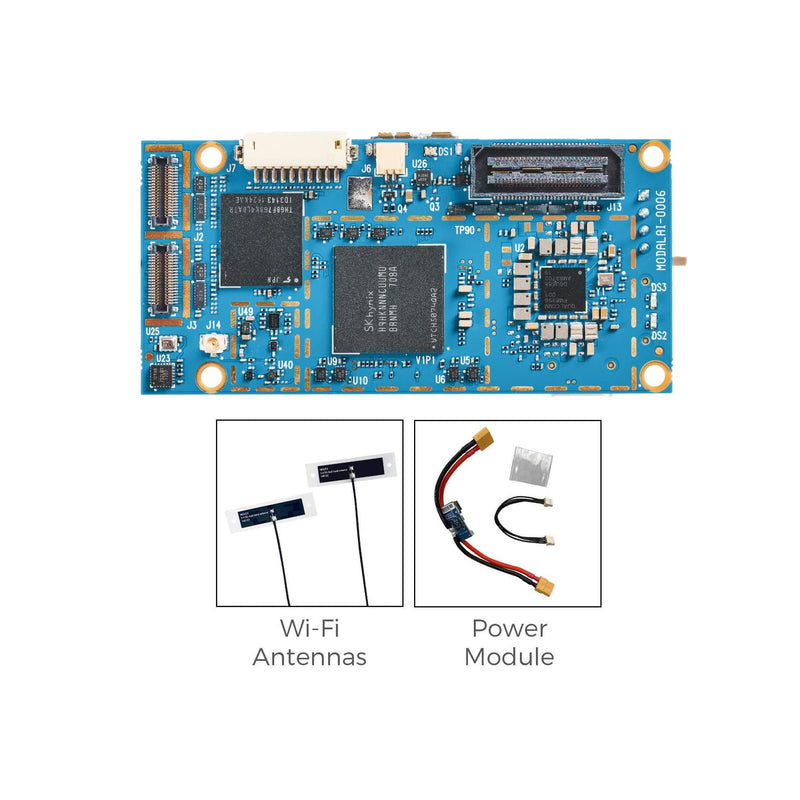

Included in this Kit

Kit Number: MDK-M0006-2-01

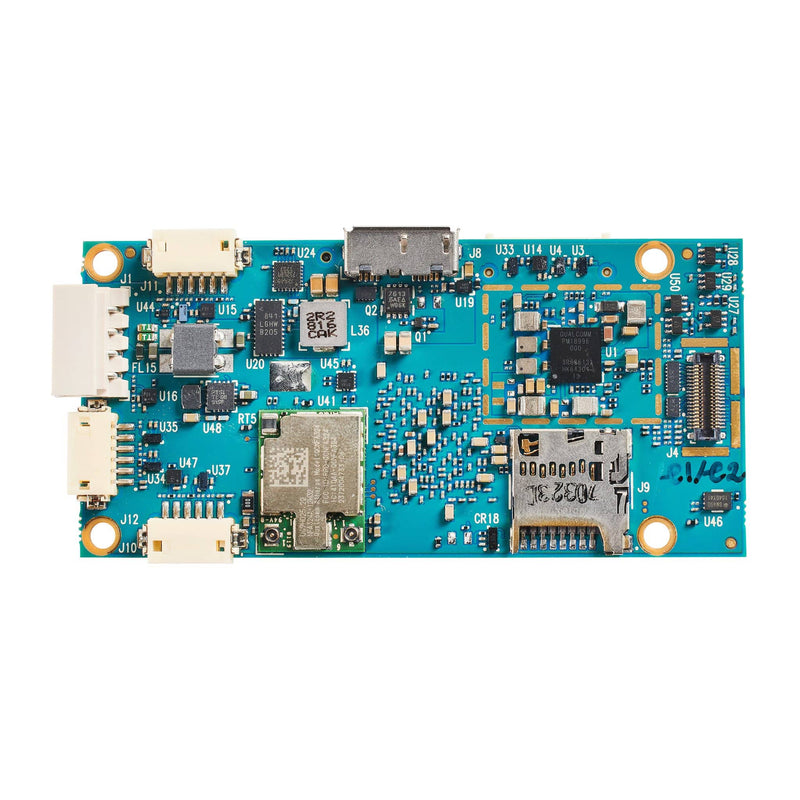

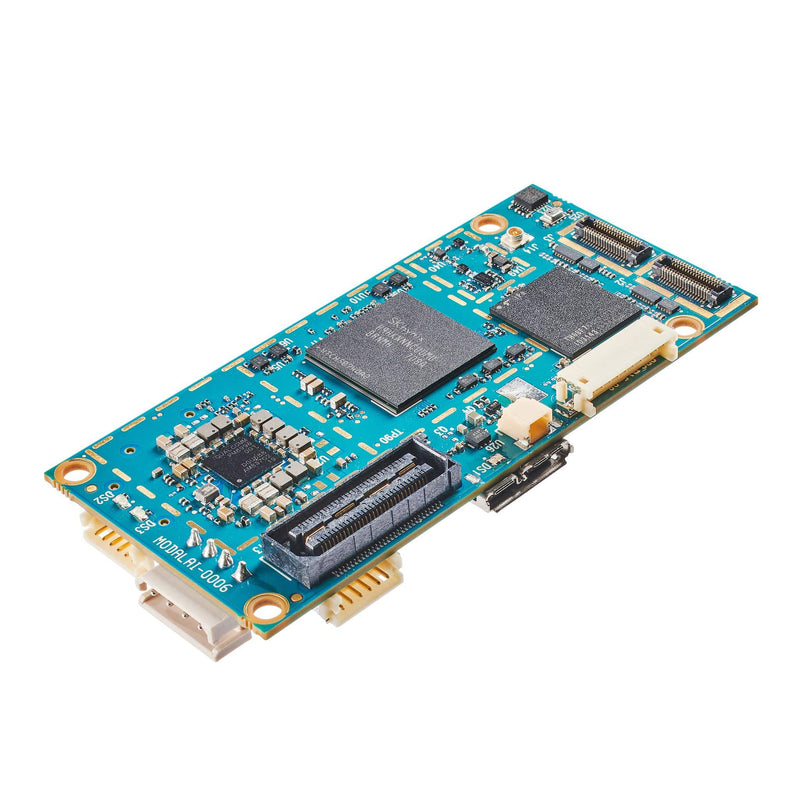

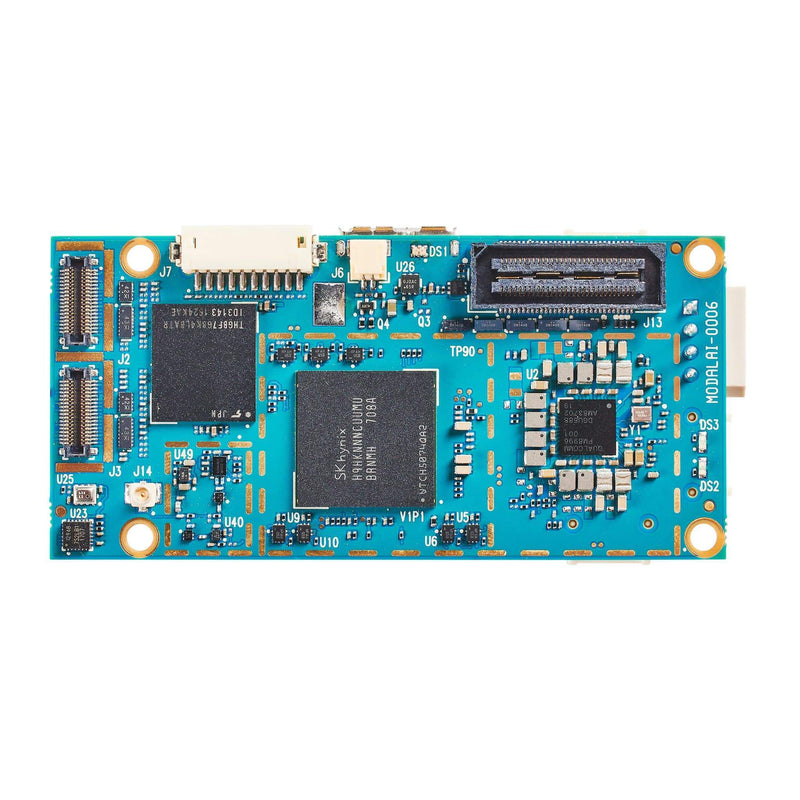

• MDK-M0006-2-00 - VOXL Core Board Kit ("Blue board", marked M0006)
• MDK-M0041-1-01 - VOXL Power Adapter Kit (APMv3)
• MRF-M0006-1 - VOXL Wi-Fi Antenna Kit

Technical Details

• Snapdragon 821: Quad-core up to 2.15GHz, GPU, 2xDSP, Linux
• Video support: 3x MIPI image sensors, UVC
• Machine vision support: time synchronized IMU and image sensors
• Additional I/O: WiFi, SPI, I2C, UART, GPIO
• Light weight, powerful, SWAP-optimized computing:
• PCB weight 18g
• Power Adapter weight 13g
• Image Sensors (6g)
• Power consumption 3-10W

Datasheet

Pixhawk is a trademark of Lorenz Meier

HS Code: 8542.31.3000

ModalAI Part Numbers

Please see our handling instructions for best practices on handling your device.
