VOXL CAM Fully Integrated Robot Perception System

$1,700.00

VOXL CAM™ - Smarter Perception, Safer Navigation, all in one Small Package VOXL CAM is a state-of-the art, fully integrated robot perception system. The VOXL CAM condenses the computing power of seven PCBs and four concurrent image sensors into one compact...

  • Availability: In Stock
Config

VOXL CAM™ - Smarter Perception, Safer Navigation, all in one Small Package

VOXL CAM is a state-of-the art, fully integrated robot perception system. The VOXL CAM condenses the computing power of seven PCBs and four concurrent image sensors into one compact platform powered by Blue UAS Framework components, VOXL and Flight Core.

The VOXL CAM is designed so developers and robot builders can mount directly onto their drone or robot and accelerate their system's path to autonomy. It is designed, tested and assembled in the USA with many of its components built in the US as well.

Ready to Use Development Tools

Perception: Four onboard image sensor concurrency

  • Time of flight (ToF) for indoor depth mapping
  • Stereo Pair Image Sensors for outdoor depth mapping
  • Tracking Image Sensor for visual inertial odometery localization
  • HiRes 4k Image Sensor
  • Future versions will include more depth mapping capabilities and a FLIR camera

VOXL Compute onboard

  • Integrated Qualcomm Snapdragon 821 premium tier chipset onboard: 4 cores up to 2.4 GHz, 14nm, 4GB LPDDR4 PoP 1866MHz
  • VOXL SDK
  • Open-source software: Open CV, ROS, Docker, PX4
  • GPS-denied navigation, depth mapping, object detection, obstacle avoidance, SLAM

Flight Core onboard

  • PX4 Flight Controller
  • STM32F7 Performance
  • Onboard 3x IMU and Barometer

Connectivity

  • Optional 4G for cellular carrier-based networks

Modularity

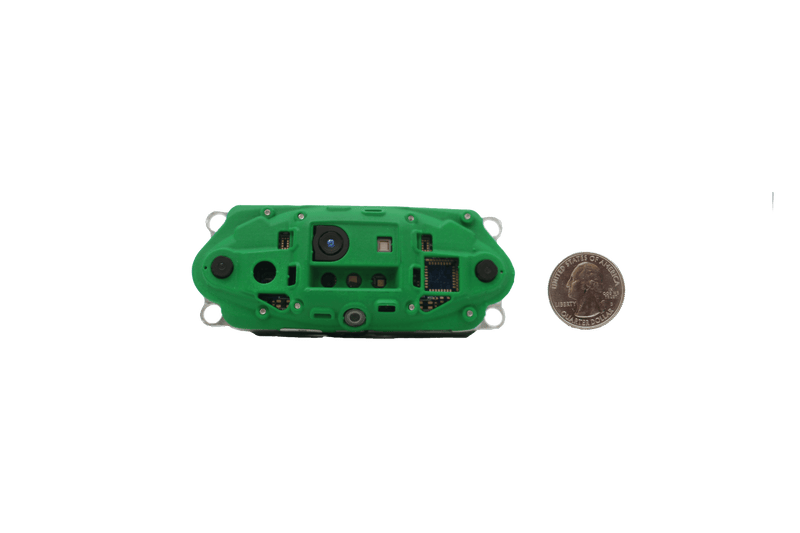

  • Small form factor, base configuration weighs 57.5g, 87g with flight controller and modem
  • Enable perception for a breadth of different applications (robots, drones, IoT devices)

Technical Details

Block Diagram

Datasheet

Product Brief

Configurations

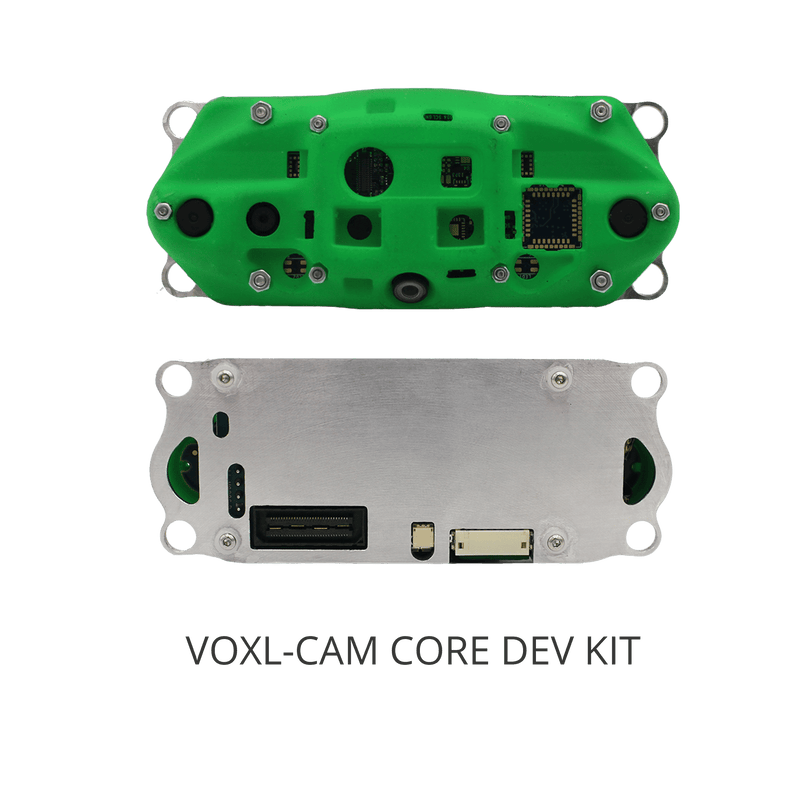

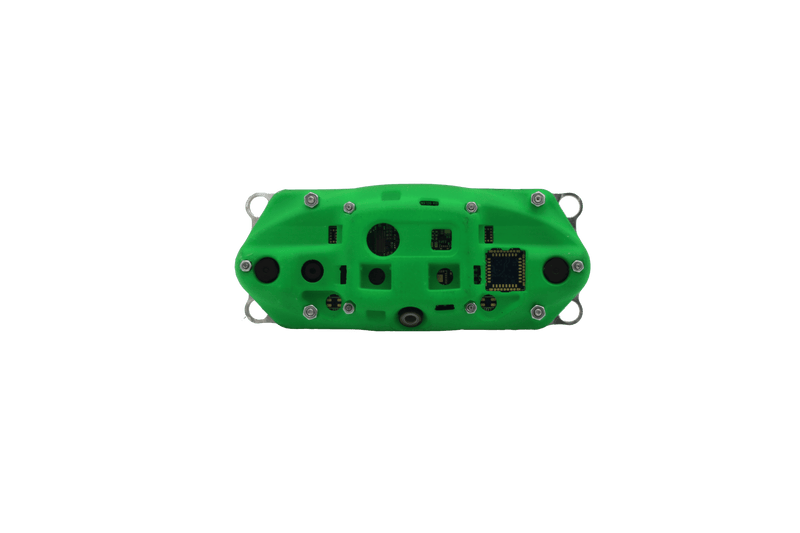

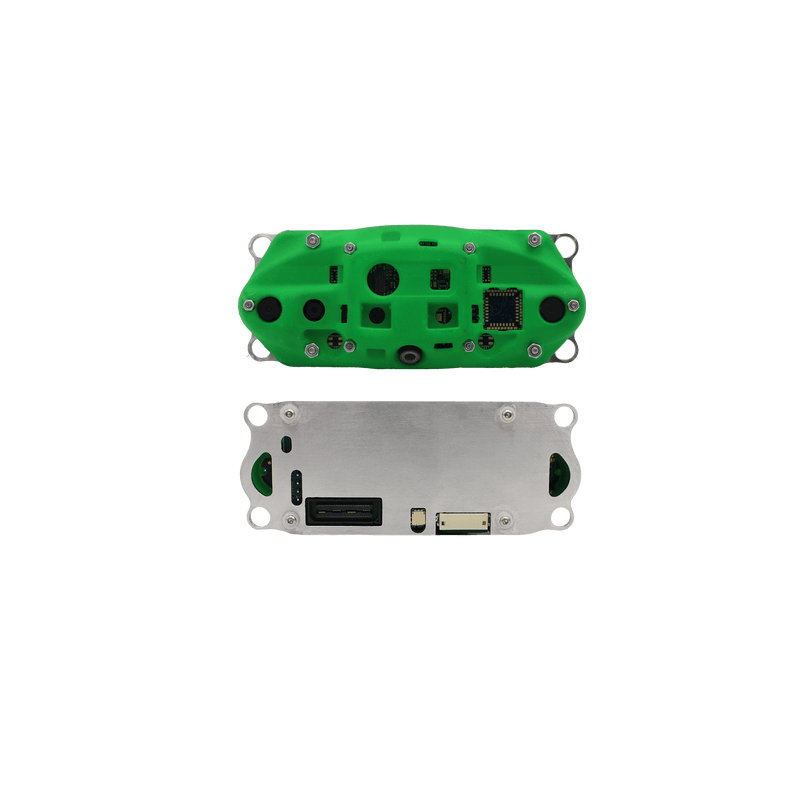

VOXL CAM Core

  • Weight: 57.5g
  • Perfect for outdoor perception
  • Optimized for computer vision
M0006 VOXL
Web Link
M0038-1 Mezzanine Gen 1 - Stereo, IMU, Tracking connector
MDK-M0041-1-B-01
 APMv3
Web Link
MSU-M0014-1-01
 Tracking image sensor OV7251
Web Link
MSU-M0015-1-01 QTY. 2 Stereo image sensor OV7251
Web Link
MSU-M0036-1-01 QTY. 2 Extension Flex
Web Link
MSU-M0025-1-01 HiRes Image Sensor



VOXL CAM + TOF

  • Weight: 57.5g
  • Perfect for indoor perception
  • Optimized for computer vision
M0006 VOXL
Web Link
M0038-1 Mezzanine Gen 1 - Stereo, IMU, Tracking connector
MDK-M0041-1-B-01
 APMv3
Web Link
MSU-M0014-1-01
 Tracking image sensor OV7251
Web Link
MSU-M0015-1-01
 QTY. 2 Stereo image sensor OV7251
Web Link
MSU-M0040-1-01 VOXL Time of Flight (ToF) Sensor w/ Interposer
Web Link
MSU-M0036-1-01 QTY. 2 Extension Flex
Web Link

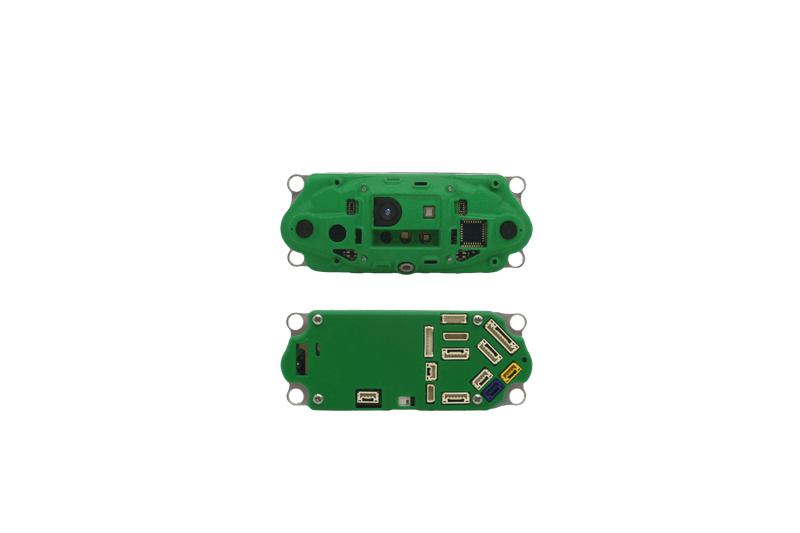

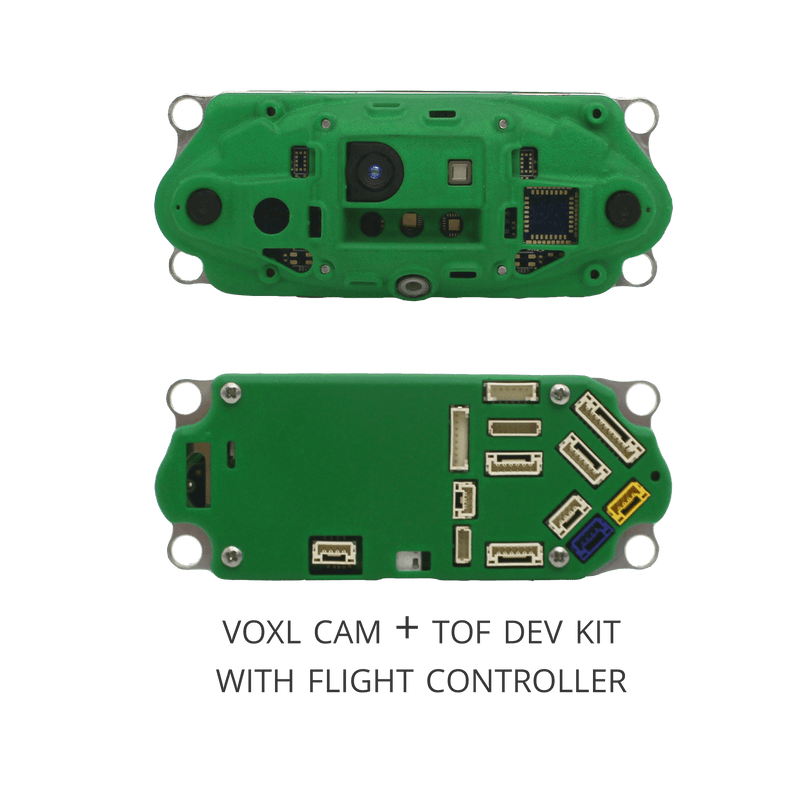

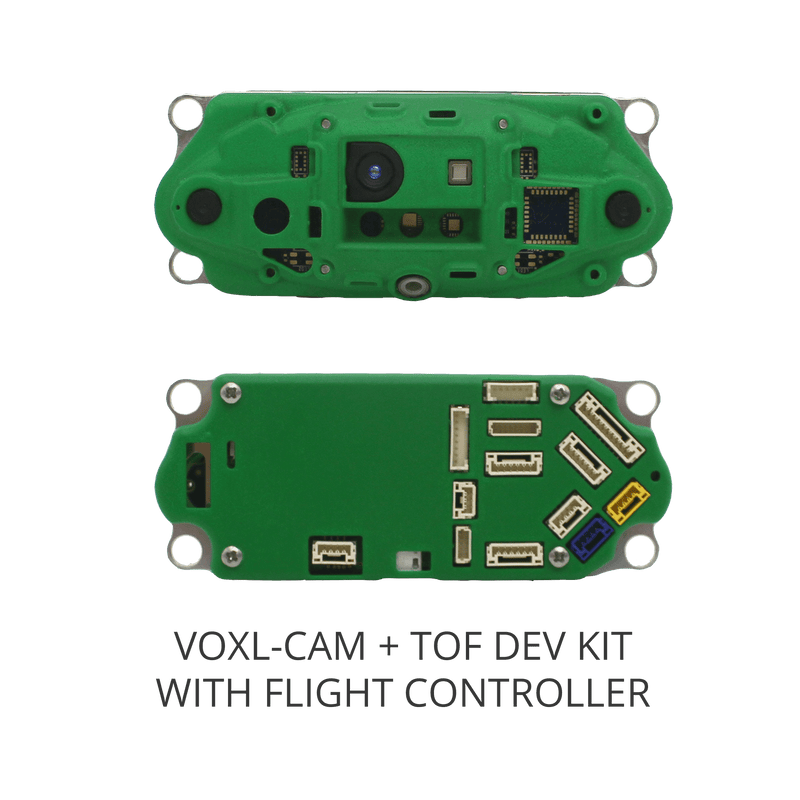

VOXL CAM + TOF w/ Flight Controller

  • Weight: 73g
  • Perfect for indoor autonomous navigation
  • SLAM navigation ready
  • Built in PX4 compatible flight controller
  • Everything included with VOXL CAM + TOF PLUS:
MDK-M0018-2-00

VOXL Flight Core

Web Link
MDK-M0017-1-01

VOXL USB Expansion Board with Fastboot and Emergency Boot

Web Link

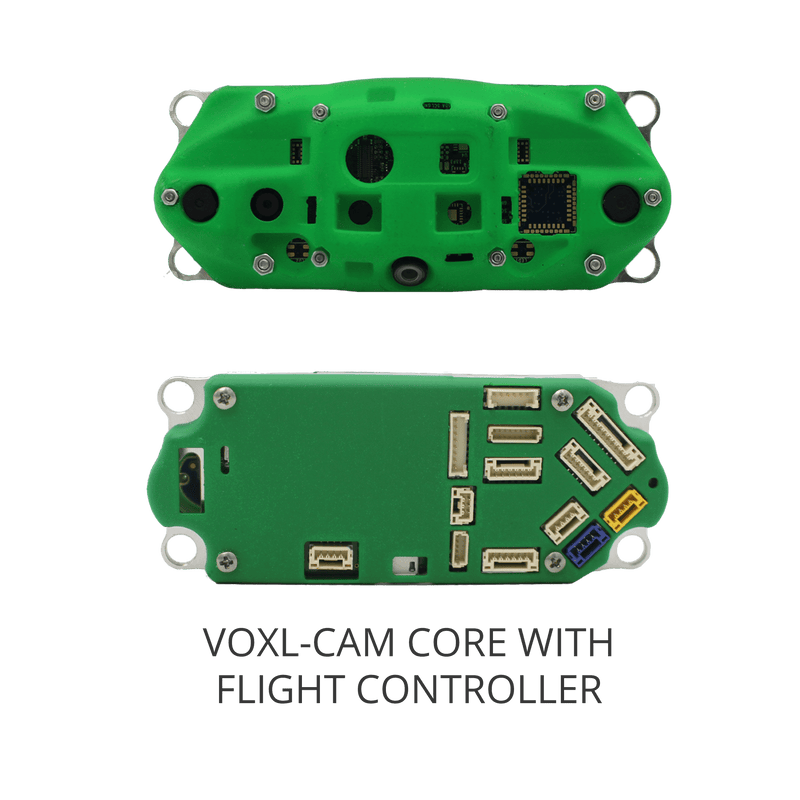

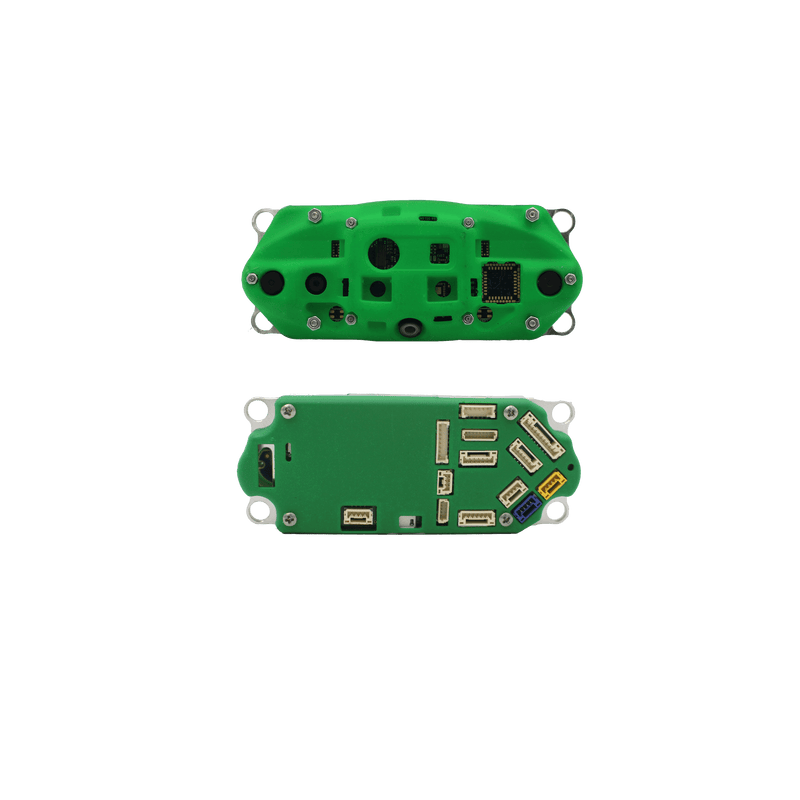

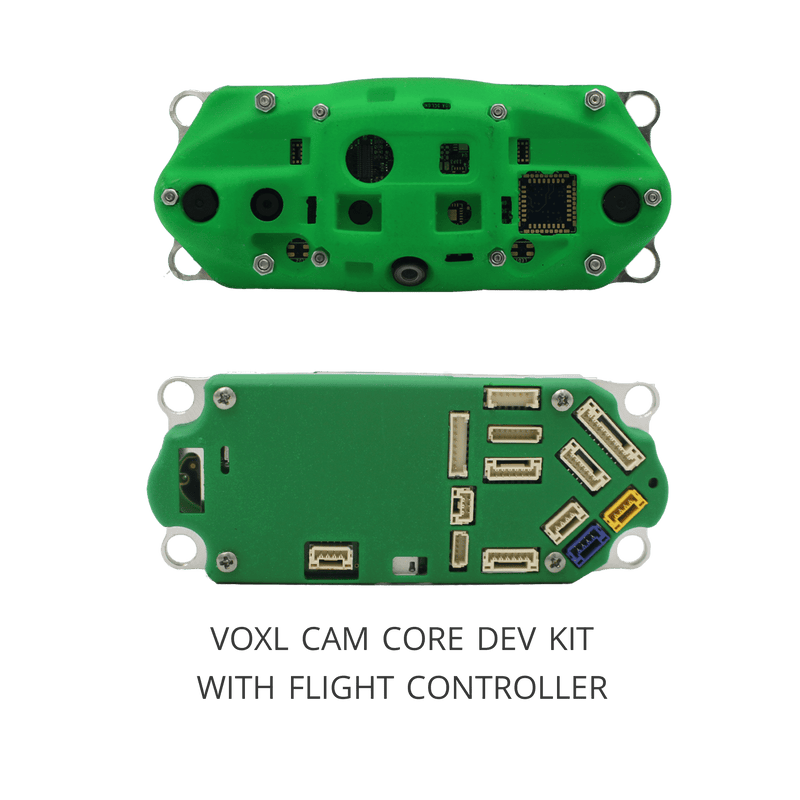

VOXL CAM Core w/ Flight Controller

  • Weight: 73g
  • Perfect for outdoor autonomous navigation
  • Built in PX4 compatible flight controller
  • Everything included with VOXL CAM Core PLUS:
MDK-M0018-2-00

VOXL Flight Core

Web Link
MDK-M0017-1-01

VOXL USB Expansion Board with Fastboot and Emergency Boot

Web Link

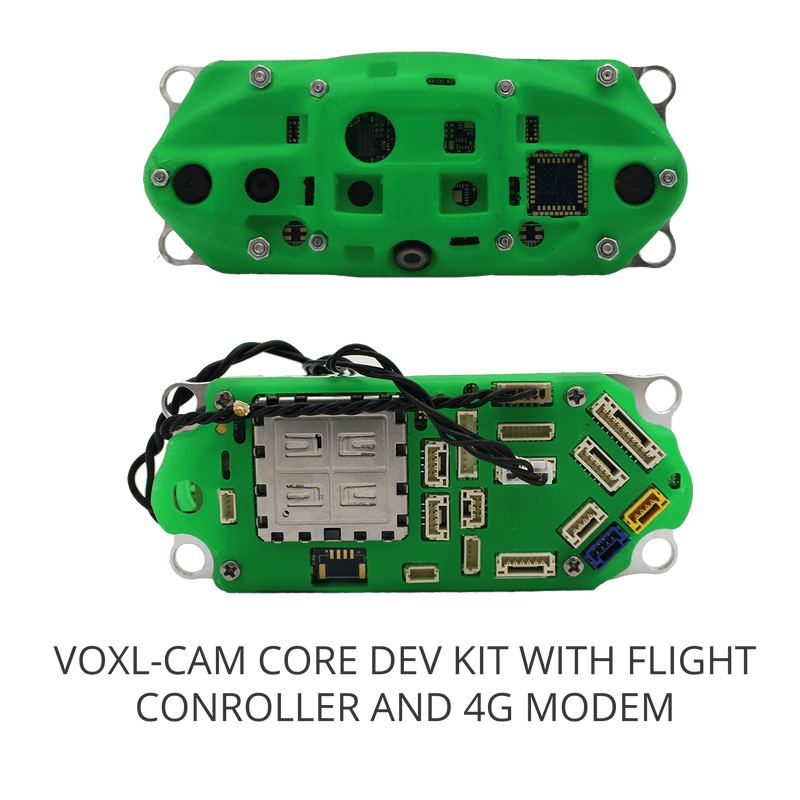

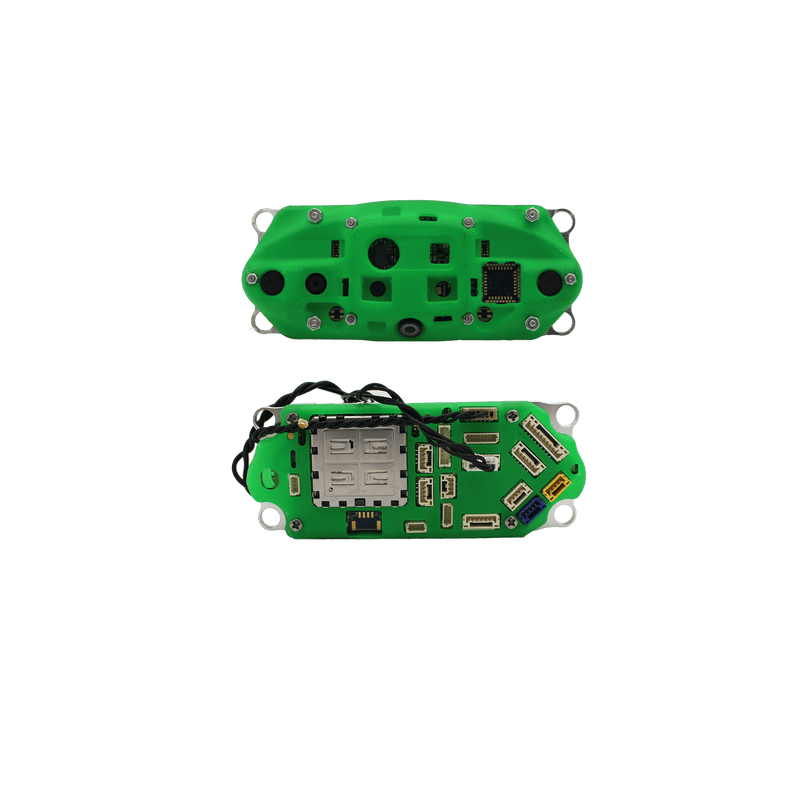

VOXL CAM Core w/ Flight Controller and Modem

  • Weight: 87g
  • Perfect for outdoor autonomous navigation
  • Built in PX4 compatible flight controller
  • Built in Modem (options for North America and Europe)
  • Everything included with VOXL CAM Core PLUS:
MDK-M0018-2-00

VOXL Flight Core

Web Link
MDK-M0030-1-03 VOXL Cellular LTE and USB Hub Add On (North America)
MDK-M0030-1-02 VOXL Cellular LTE and USB Hub Add On (Europe)

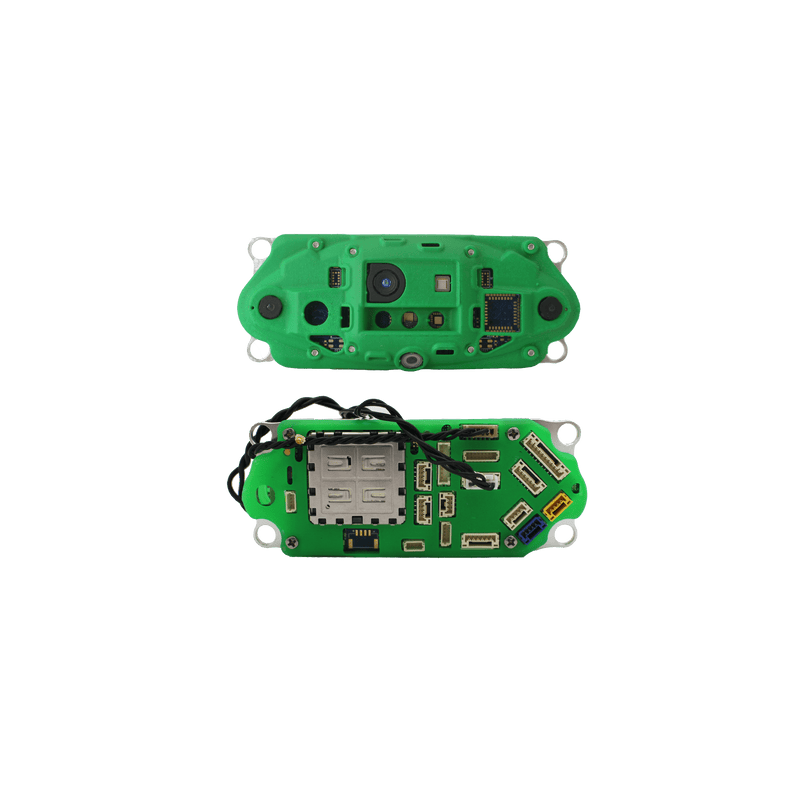

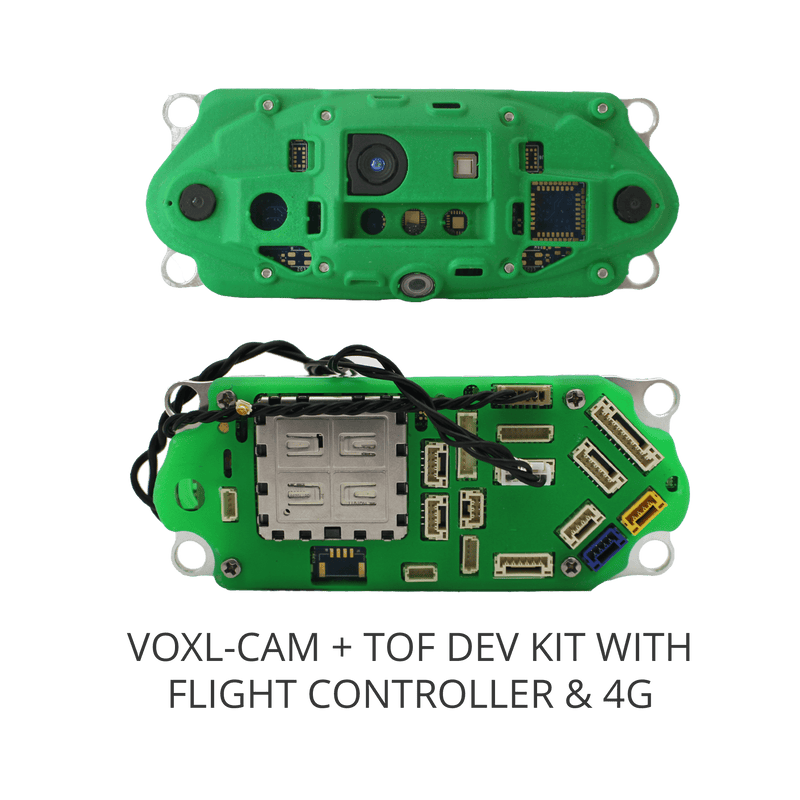

VOXL CAM + TOF w/ Flight Controller and Modem

  • Weight: 87g
  • Perfect for indoor autonomous navigation
  • SLAM navigation ready
  • Built in PX4 compatible flight controller
  • Built in Modem (options for North America and Europe)
  • Everything included with VOXL CAM + TOF PLUS:
MDK-M0018-2-00

VOXL Flight Core

Web Link
MDK-M0030-1-03 VOXL Cellular LTE and USB Hub Add On (North America)
MDK-M0030-1-02 VOXL Cellular LTE and USB Hub Add On (Europe)


Expandability

VOXL CAM is compatible with ModalAI's VOXL Cellular add-ons today and can connect directly to Flight Core for controlling a drone or robot. Future configurations will have even more capability.
