VOXL Flight - PX4 Autonomy Computer and Flight Controller in one!

$1,071.00

VOXL® Flight  Enables Smaller, Smarter, and Safer Autonomous Drones VOXL Flight combines VOXL® and Flight Core® into one package. This is the first open computing platform designed specifically for drones (sUAS) to combine the power and sophistication of Snapdragon with the flexibility and...

  • Availability: In Stock
Kit

VOXL® Flight  Enables Smaller, Smarter, and Safer Autonomous Drones

VOXL Flight combines VOXL® and Flight Core® into one package. This is the first open computing platform designed specifically for drones (sUAS) to combine the power and sophistication of Snapdragon with the flexibility and ease of use of a PX4 flight controller in a single PCB. VOXL Flight is 100% software compatible with VOXL and Flight Core, but in a single PCB to reduce cabling, cost and increase reliability.

Fly safer with VOXL Flight. VOXL supports obstacle avoidance and GPS-denied (indoor) navigation fused with a PX4 flight controller on a single PCB.

Ships within 2 business days.

Ready to Use Drone Development Tools

You can purchase VOXL Flight in a ready to fly drone, VOXL m500, or in a ready to mount enclosure, Flight Deck.


VOXL Flight Contains the Most Popular Drone Developer Tools

The VOXL Flight advances the Snapdragon Flight and Qualcomm Flight Pro architectures to provide great support for:

  • PX4 Avoidance and Navigation
  • ROS  / ROS2 / MAVROS / MAVSDK
  • Open source Linux kernel, cross-compilers, PX4, ROS, OpenCV
  • Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing.
  • Run Docker on VOXL target for improved portability and maintenance.
  • Add cellular LTE connectivity for beyond visual line of sight (add-on).

Technical Details

  • Snapdragon 821: Quad-core up to 2.15GHz, GPU, 2xDSP, Linux
  • 216MHz, 32-bit ARM M7 STM32F765II, PX4
  • Video support: 3x MIPI image sensors, UVC
  • Machine vision support: time synchronized IMU and image sensors
  • Additional I/O: WiFi, SPI, I2C, UART, GPIO
  • Light weight, powerful, SWAP-optimized computing:
    • Weight 24g
    • Power Adapter weight 13g
    • Image Sensors (6g)
    • Power consumption 3-10W

    Datasheet

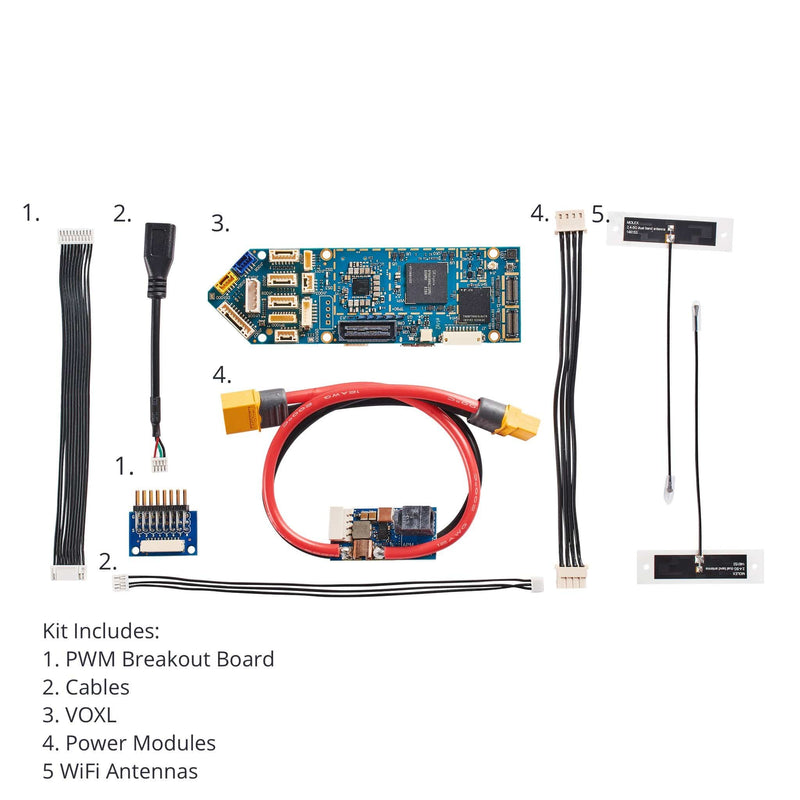

    What's Included

      MPN Description Components Included in Kit
      MDK-M0019-2-00 Board Only Kit

      MCCA-M0019-2-T CCA, VOXL-Flight, Tested

      M10000020 Label, 2x.625 ESD CAUTION Warning Sticker, yellow

      MPKG-00001 ESD Bag, 3"x5"x3", Zip Lock AntiStatic Bags
      MDK-M0019-2-01 VOXL-Flight Dev Kit, R1

      MCCA-M0019-2-T CCA, VOXL-Flight, Tested

      MDK-M0022-1-01 Flight Core PWM Breakout Kit

      • MCBL-00004-1 Cable, Flight Core, PWM Output
      • MCCA-M0022-1 PWM Breakout Board, 3x8, RA
      • MPKG-00001 ESD Bag, 3"x5"x3", Zip Lock AntiStatic Bags

      MDK-M0041-1-01 VOXL Power Module v3 RevB Kit (VOXL, VOXL-Flight)

      • M10000503 Warning Arm Only with Flight Battery (sticker for power module)
      • MCBL-00001-1 Cable, 4P, 140mm, 2.50mm, Mini-SPOX 5268
      • MCCA-M0041-1-B-T Power Module v3, Rev B, APM 5V, CCA, Tested
      • MPKG-00001 ESD Bag, 3"x5"x3", Zip Lock AntiStatic Bags

      MKIT-00021-2 VOXL-Flight Interface Kit

      MKIT-00046-2 Product Marketing Inserts Kit, General

      MRF-M0006-1 VOXL Wi-Fi Antenna Kit



      HS Code: 8542.31.3000

      Please see our handling instructions for best practices on handling your device.
