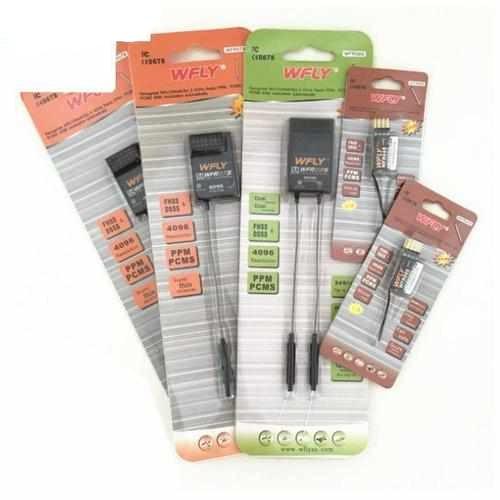

WFLY 2.4G Receiver WFR04S WFR06S WFR07S WFR09S

Features:

Choose the optimum signal for antenna

More reliable

Quicker response

Better anti-interference

Longer range

WFR06S Receiver:

WFLY 2.4G adopted hopping frequency to DSSS technology and the hopping speed is 4 MS one time.

2.4G receiver outputs high reliable PWM signal to digital servo. Oscilloscope can observe the details with nano second. But other brand receiver PWM signal is not so reliable compared with WFLY 2.4G.

High 4096 resolution, high response( with WFT09S and WFT08S transmitter).

Recognize PPM, PCMS, 4096 PCMS modulation automatically.

With hopping DSSS, WFLY 2.4G is high reliable working with 50 transmitter together.

Specifications:

2.4GHz receiver (WFR06S) 6 channel 2.4GHz Receiver

Receiver Model: WFR06S

Use in:airplane, helicopter, glider, car, boat

Band: 2.400GHz-2.4830GHz ( varies with different country and region)

Receive sensitivity:-97dBm

Fail safe ,quick recover signal

Modulation:PPM/PCMS 1024/PCMS 4096

Power:4.8-6V

Dimension: 44.8times27.9times16.39mm

Weight: 14.8g

Range test in ground: more than 700M

wfr06s 2.4g liutong receiver

Product specification:

phase50hz : segment 2.400ghz-2 . 483ghz

spirit acuity : - 97dbm

ground straight distance : greater than 700 m

way : decoder ppm / pcms 1024 / pcms 4096

electric source : 4.8-6v

Chiban Inches : 34.85 & times . 21 & times . 11.3mm

heavy : volume 5.8g

WFR07S Receiver:

2.4GHz receiver (WFR07S) 7 channel 2.4GHz Receiver

Receiver Model: WFR07S

Use in: airplane, helicopter, glider, car, boat

Band: 2.400GHz-2.4830GHz ( varies with different country and region)

Receive sensitivity: -97dBm

Fail safe , quick recover signal

Modulation: PPM/PCMS 1024/PCMS 4096

Power: 4.8-6V

Dimension: 40.42times27.27times11.88mm

Weight: 9.6g

Range test in ground: more than 800M

WFR09S Receiver:

2.4GHz receiver (WFR09S) 9 channel 2.4GHz dual MCU, dual antenna receiver

Receiver Model: WFR09S

Use in:airplane, helicopter, glider, car, boat

Band: 2.400GHz-2.483GHz ( varies with different country and region)

Receive sensitivity:-97dBm

Fail safe, quick recover signal

Modulation:PPM/PCMS 1024/PCMS 4096

Power:4.8-6V

Dimension: 44.8times27.9times16.39mm

Weight: 14.8g

Range test in ground: more than 900M

Dual MCU, dual antenna receiver:Contains two receivers working independently

WFLY 2.4Ghz System

WFLY 2.4GHz system uses the DSSS frequency-hopping technology . DSSS is direct sequence spread spectrum which is one of the most strongest anti-interference ability in the modern digital communications.

The DSSS application in the WFLY 2.4GHz systems is also designed the hopping function .The current system is can hopping in three channels , the width of each channel is 1Mhz. Once a channel is interference, will communicate in another channel. Improve the Interference and the reliability .

Each device has a separate identification code, will improved the anti-interference when more than one device work together.

Automatic channel scan. Each WFLY 2.4GHz transmission equipment automatically scan the available channels, to ensure the equipment can more reliable work.

Communications data cheakout are according to the identification code for CRC to ensure that a large number of 2.4GHz devices will not interfere with each other while working to enhance immunity and reliability.

Selected high-tech electronics optimized design are provided a powerful guarantee to the reliability and robustness of the equipment .

WFLY uphold the traditional software development with high reliability to ensure that each WFLY 2.4GHz equipment is reliable and stronger anti-interference ability.
