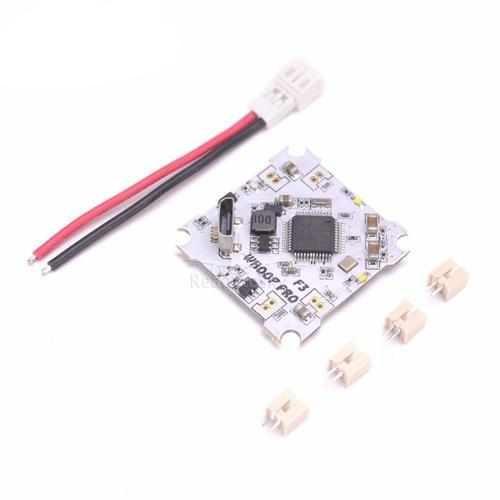

Whoop Pro F3 + OSD Brushed Flight Control

F3 WHOOP PRO flight control 1S, using MPU6000 sensor and SPI bus connection, improves the sampling rate of the sensor, improves the running frequency of MCU main control program, and provides higher control accuracy and faster response speed. Integrated OSD with Betaflight on-line parameter adjustment, is applied to the current four shafts of the horizon brushless four - axis frame. Integrated brushes drive. It has the advantages of light weight, small volume and low thickness.

When the receiver is configured, when the SBUS/IBUS and DSM receivers are entered, configure the RX3 as the input interface.

Factory firmware: betaflight_3.2.0_OMNIBUS

Flight control configuration:

CPU: STM32F303C (72MHZ, 256K FLASH)

Sensor: MPU-6000 three axis accelerometer / three axis gyroscope (SPI connection)

Power supply: 1S battery input (DC 3.6-4.2V)

BEC: built-in 5V/0.5A

Receiver: PPM, SBUS, IBUS, Spektrum DSM2/DSMX, 1024/2048.

Built-in OSD interface

Active buzzer interface (with buzzer)

6A*4 road with a brush motor drive, fully meet the needs

Built-in voltage detection and alarm

Plate size: 28.5*28.5MM

Screw hole spacing: 36*36MM diameter 3.0MM

Board weight: 2.5 grams

Package included:

1pcs x Whoop pro F3 + OSD Brushed Flight Control
