Wireless T800 FPV AV Transmitter RC32-2 Receiver

Specifications:

5.8G 1500mW T800 high-power image transmission transmitter, new design, to meet the long distance and simple access of AAT

tracking antenna.

Integrated 6.5M and 6.0M audio input channels to meet the perfect access of various types of AAT on the market.

The integrated LED display system displays the current transmission channel intuitively.

Integrated synchronous dialing function, can complete one-button frequency change function on the ground and in the air. (Requires

ground receiving support)

Ultra wide voltage input, support 2 ~ 6S power input directly.

Transmission channel: 32 channels

Transmission power: 1500mW

Voltage input: 7 ~ 28V wide voltage input

Reverse connection protection: Yes

Cooling system: Active cooling fan

Working current: 800ma 12V

Working temperature: -10 ~ + 85 degrees

Audio system: 6.0 / 6.5

AAT access: support

Synchronous dialing: support (requires ground receiving support)

Video bandwidth: 8M

Product net weight: 50g

Dimensions: 54 * 32 * 26mm

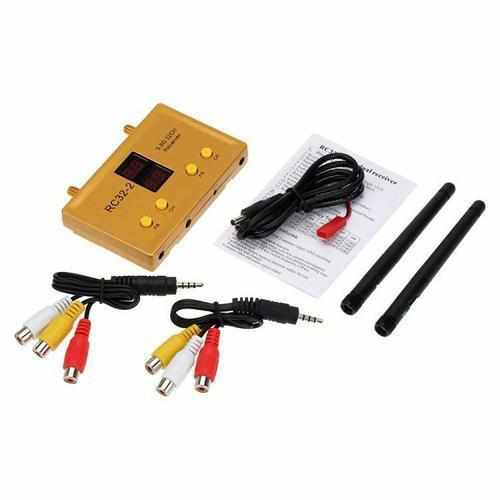

RC32-2:

Receiving frequency: ISM 5.6GHz-5.95GHz 32 CH

Working voltage: 6.0V + ～ + 24.0V (12V)

Supply current: <130 mA / 12V DC

Video output: 1V ± 0.2Vp-P / 75Ω

Audio output: 0.5 ～ 2.0Vp-P / 10KΩ

TV system: PAL / NTSC / SECAM (AUTO)

Wireless receiving sensitivity: <-90dBm (15dBuV)

Built-in antenna: 5.8G 3db

Product interface: inner pin (with inner hole antenna)

Weight: 115 grams

Dimensions (length x width x height): 97x61x15mm

Working temperature: -10 ℃ ～ + 85 ℃
