ZD850 Hexa-Rotor Frame

Parameters:

- Diagonal wheelbase: 850mm

- Weight: about 1210 g

- Material: full carbon fiber

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:

1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Microprocessor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit

2. frequency: 168MHZ, 256K RAM

3.32 STM32F103 backup coprocessor

Sensor

1.L3GD20 3-axis digital gyroscope 16

2.LSM303D 3-axis accelerometer 14 / Magnetometer

3.MPU6000 6-axis accelerometer / magnetometer

4.MS5607 precision barometer

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

5010 360kv Motor :

These are really great outrunners. We've tested this line and they work extremely well.

This is 5010-14 360KV Brushless Motor

Features:

1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.

2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.

3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.

4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.

5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.

6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.

7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .

Specifications:

Motor size: 50*10mm

Shaft size: 4mm

Weight: 80g

KV(rpm/v): 360

Battery: 2-6Li-Po

ESC: 20-40A

40A OPTO 2-6S Brushless ESC

Brand:Readytosky

Cont.Current:40A

Burst Current(10sec):60A

BEC:None

Lipo:2-6S

Programming:Timing(high/middle)

Weight:26g

Size:68x25x8.7mm

Plug:Φ3.5mmx3

Usage:RC Multintegrated circuitopter

APAC means Asia-Pacifintegrated circuit Version,the offintegrated circuitial ESC sold in Asia-Pacifintegrated circuit areas.

Features:

- Using Multintegrated circuitopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifintegrated circuitally for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

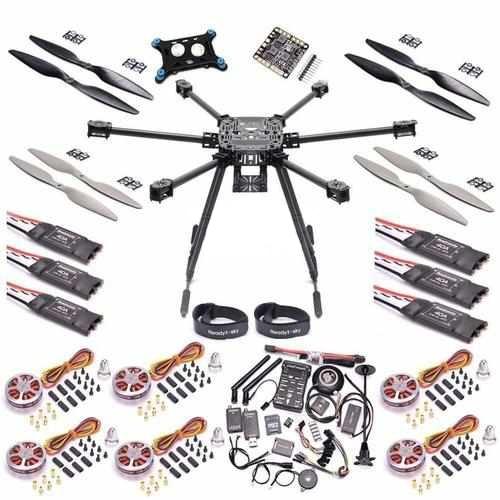

Package includes:

- ZD850 full carbon fiber frame(unassemble) X1( red color and green color landing protection foam send at random）

- 5010 360KV motor x 6

- ReadytoSky 40A OPTO 2-6S Brushless ESC x 6

- Pixhawk 2.4.8 32bit ARM Flight Controllerx 1 ( 2 kinds design of board sent at random)

- shock absorber x 1

- Safety buttonx 1

- Buzzer x 1

​​​​- 4G TF card (IO firmware has written) x1

- Neo-M8N Gps Module x1

- Black Gps Holder x1

- Power Module x1

- Minim OSD w/ shell x1( 2 kind of OSD cable send at random)

- I2C Splitter Expand Module x1

- PPM Module w/ shell x1

- 433/915 MHZ telemetry x1 ( send by your choice)

- 6pin turn 6pin cable x 1

- 4pin turn 4pin cable x 1

- 3pin DuPont line x1

- 5v/12v PDB x1

- battery belt x 2

- servo cable x 5

- cable with XT60 connector x1

- 1245 propeller x 4 pair
